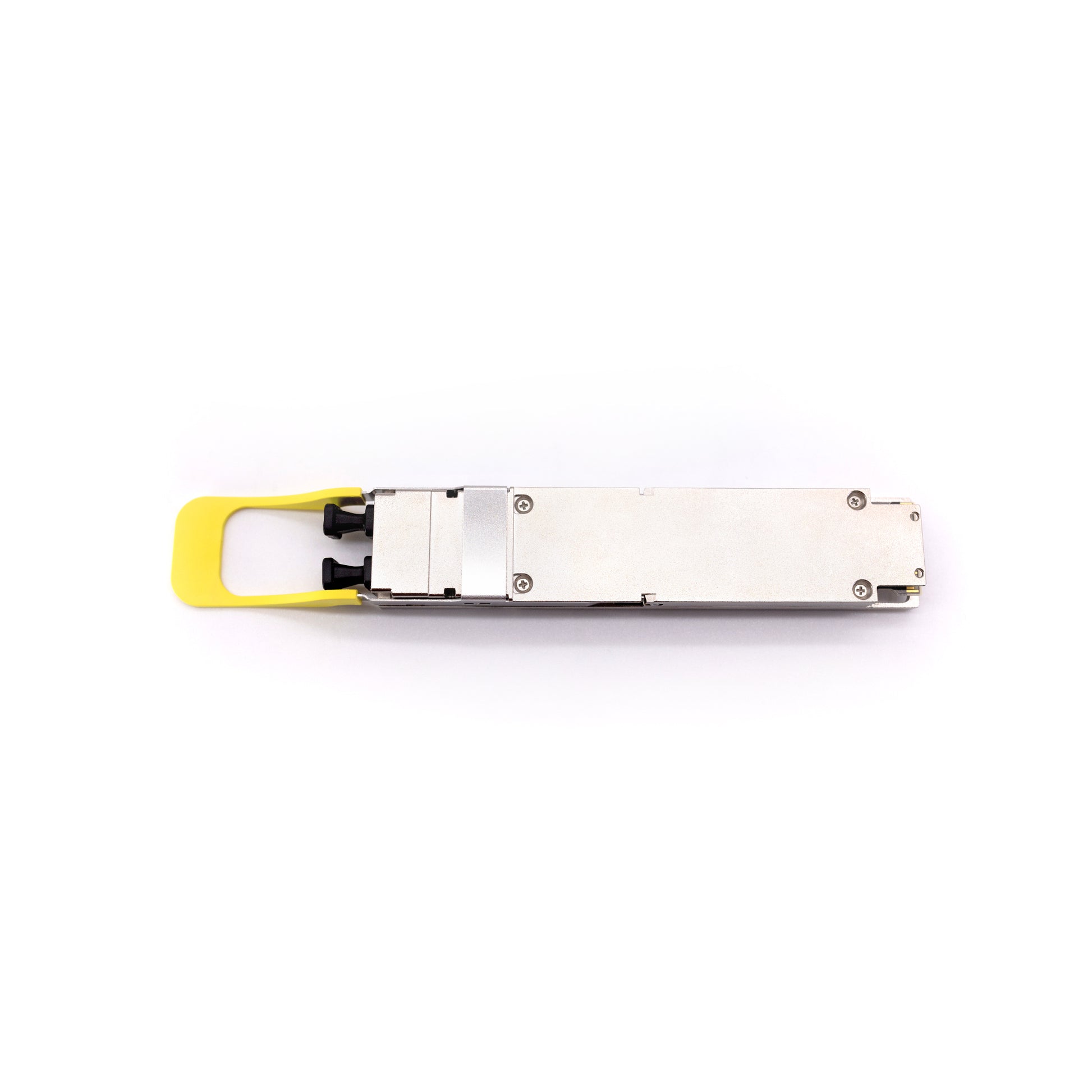

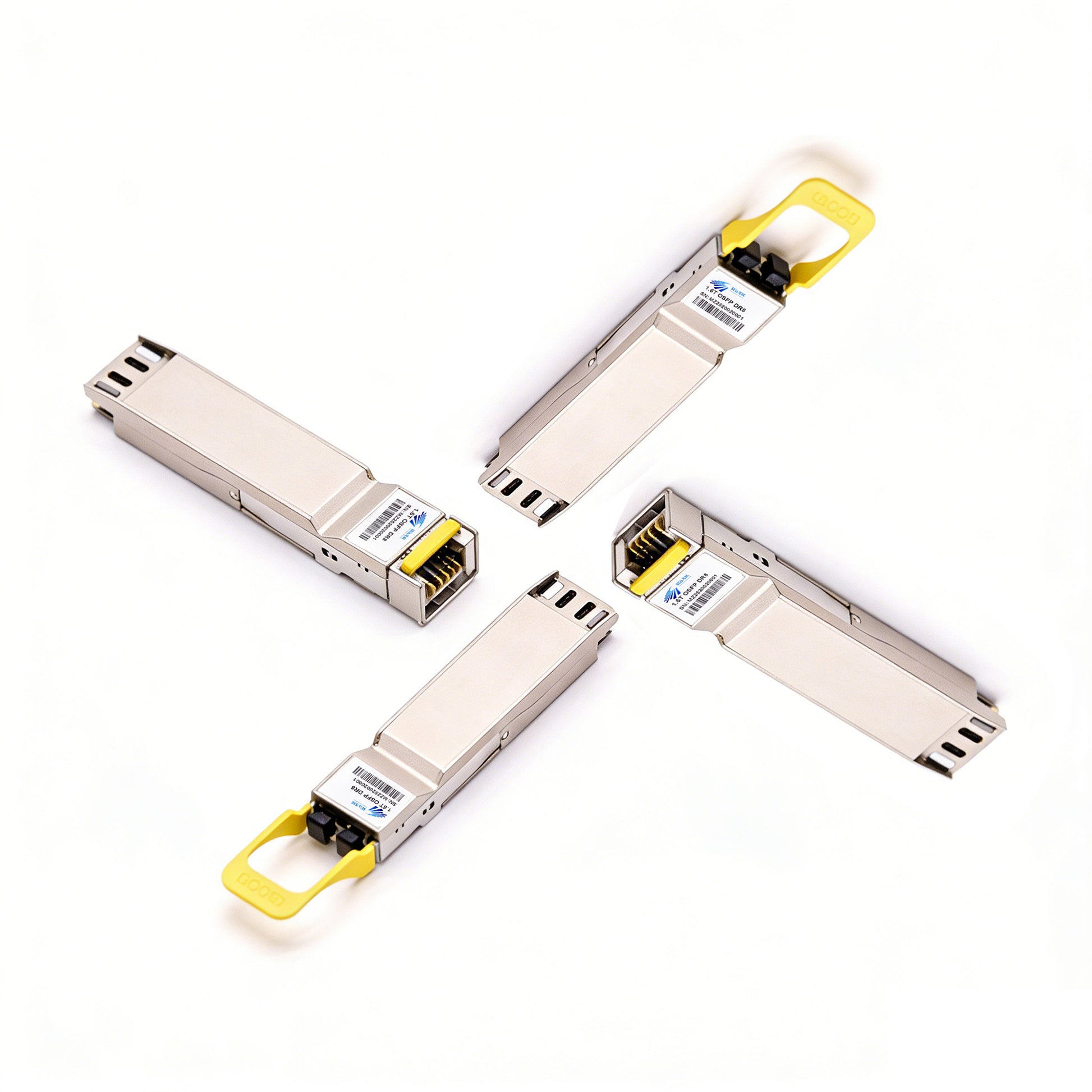

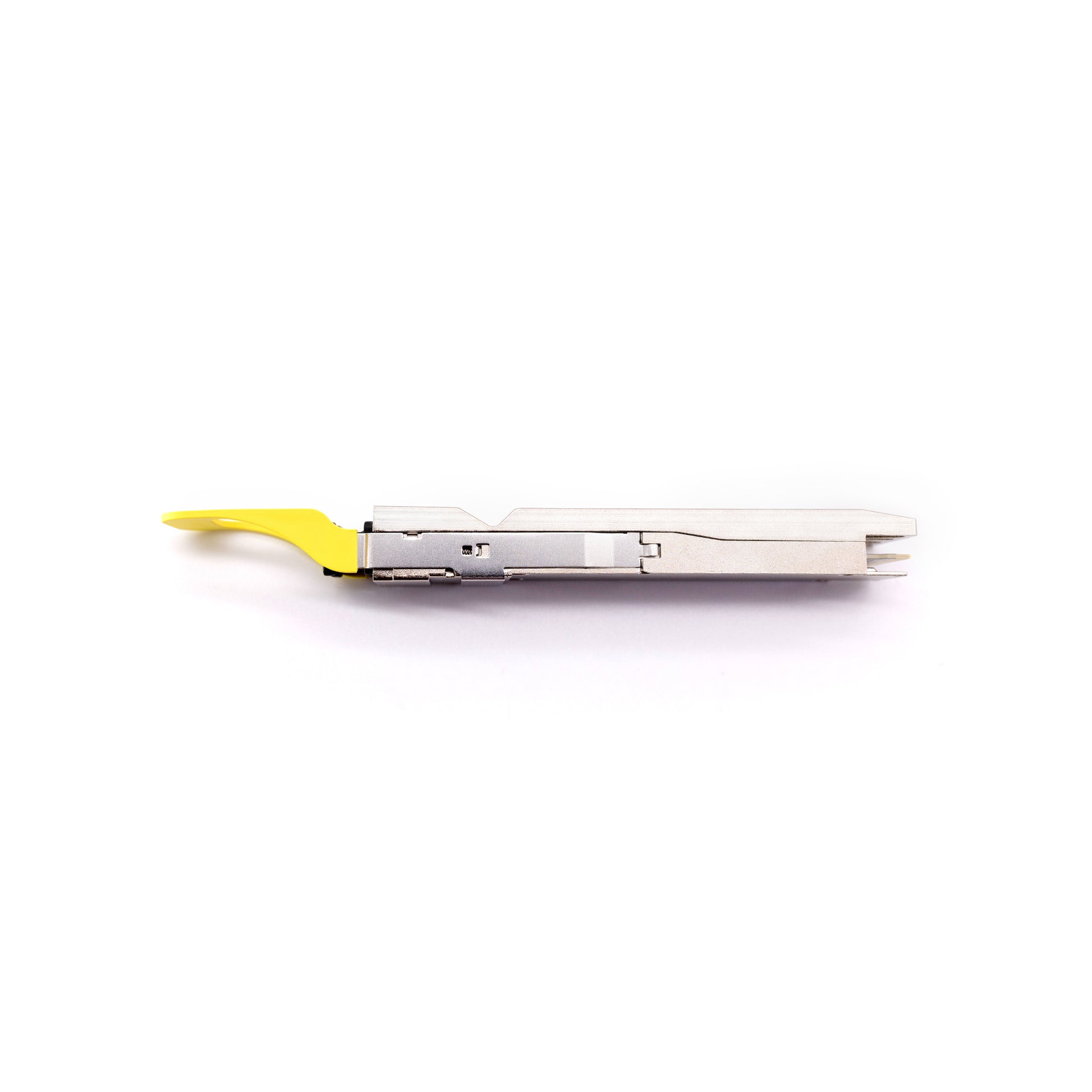

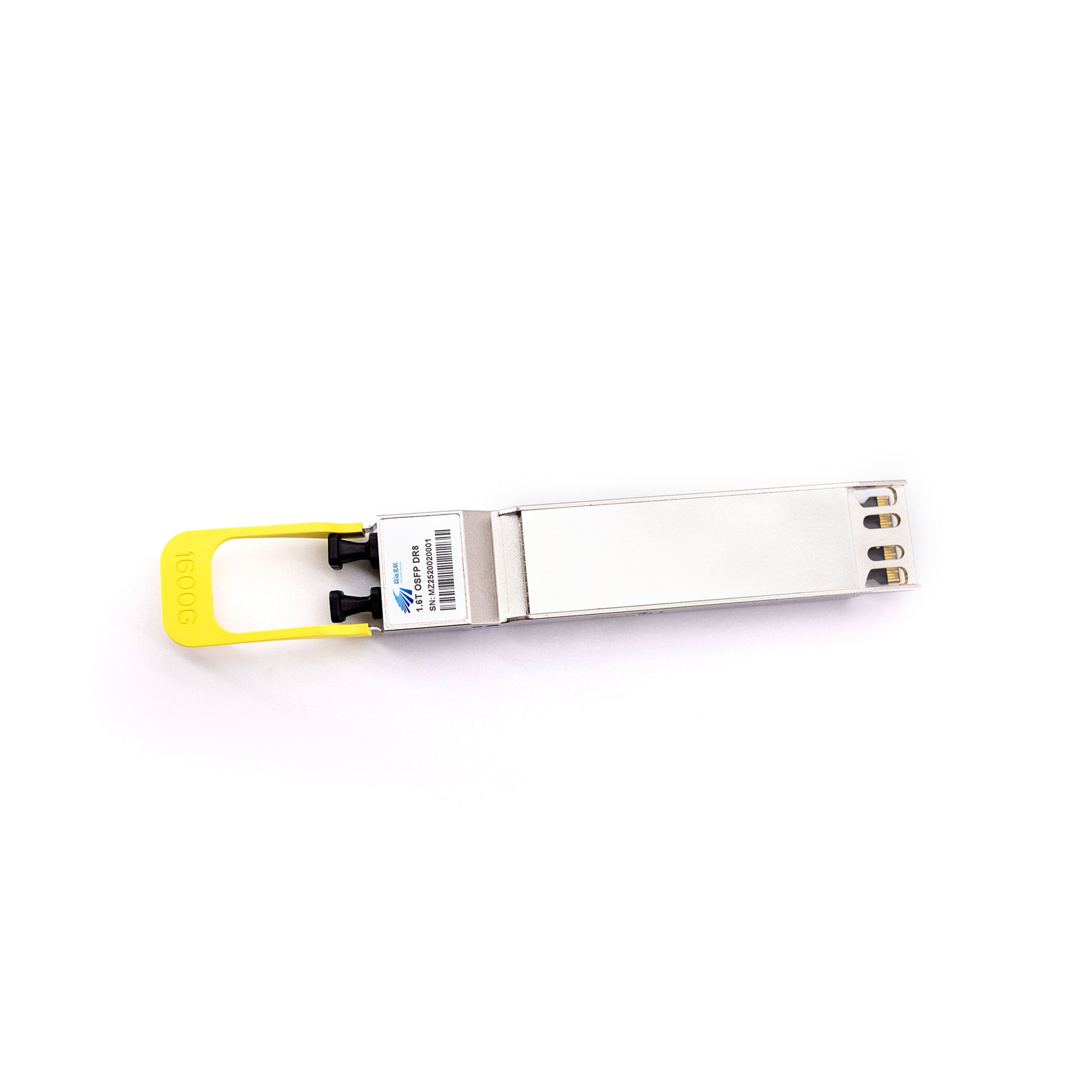

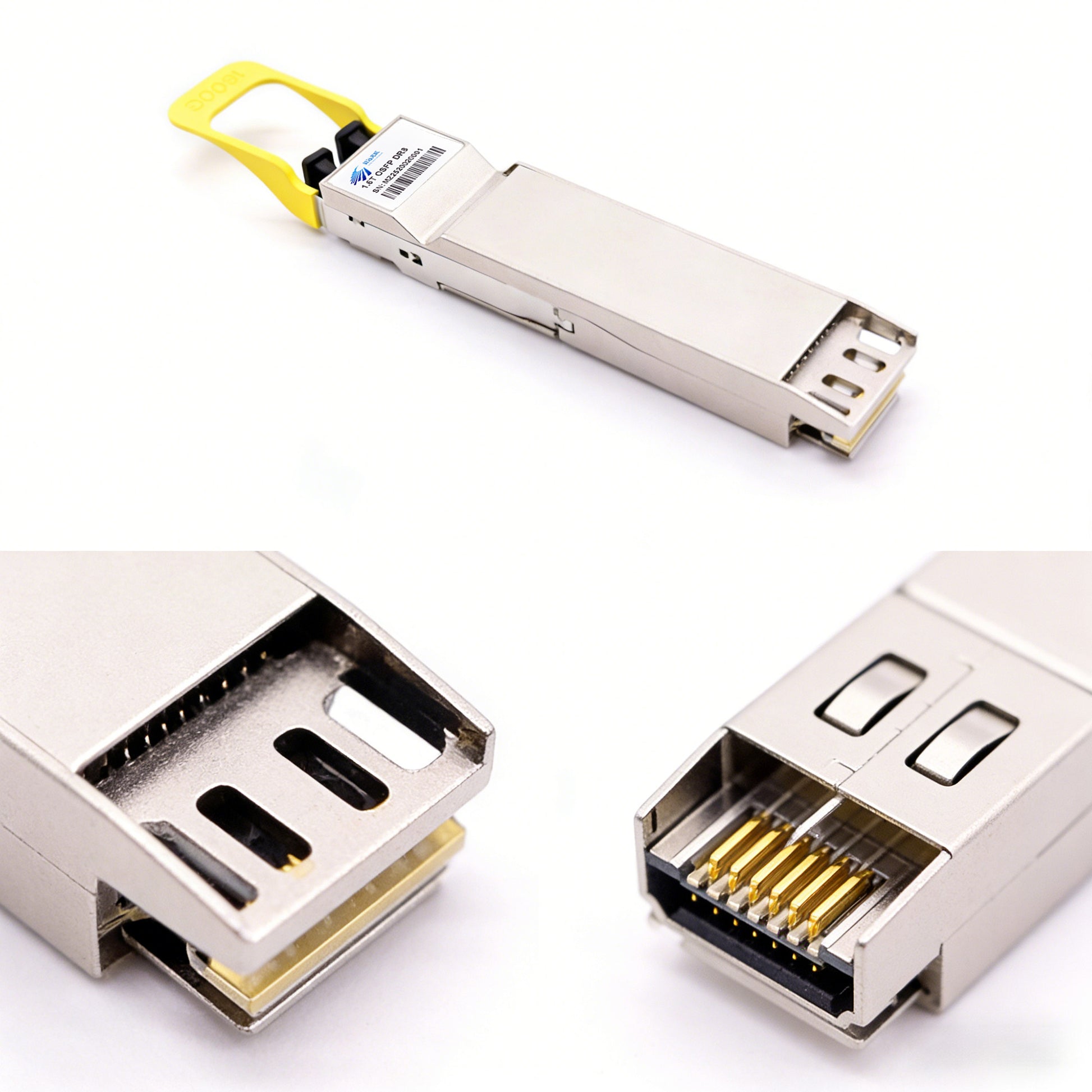

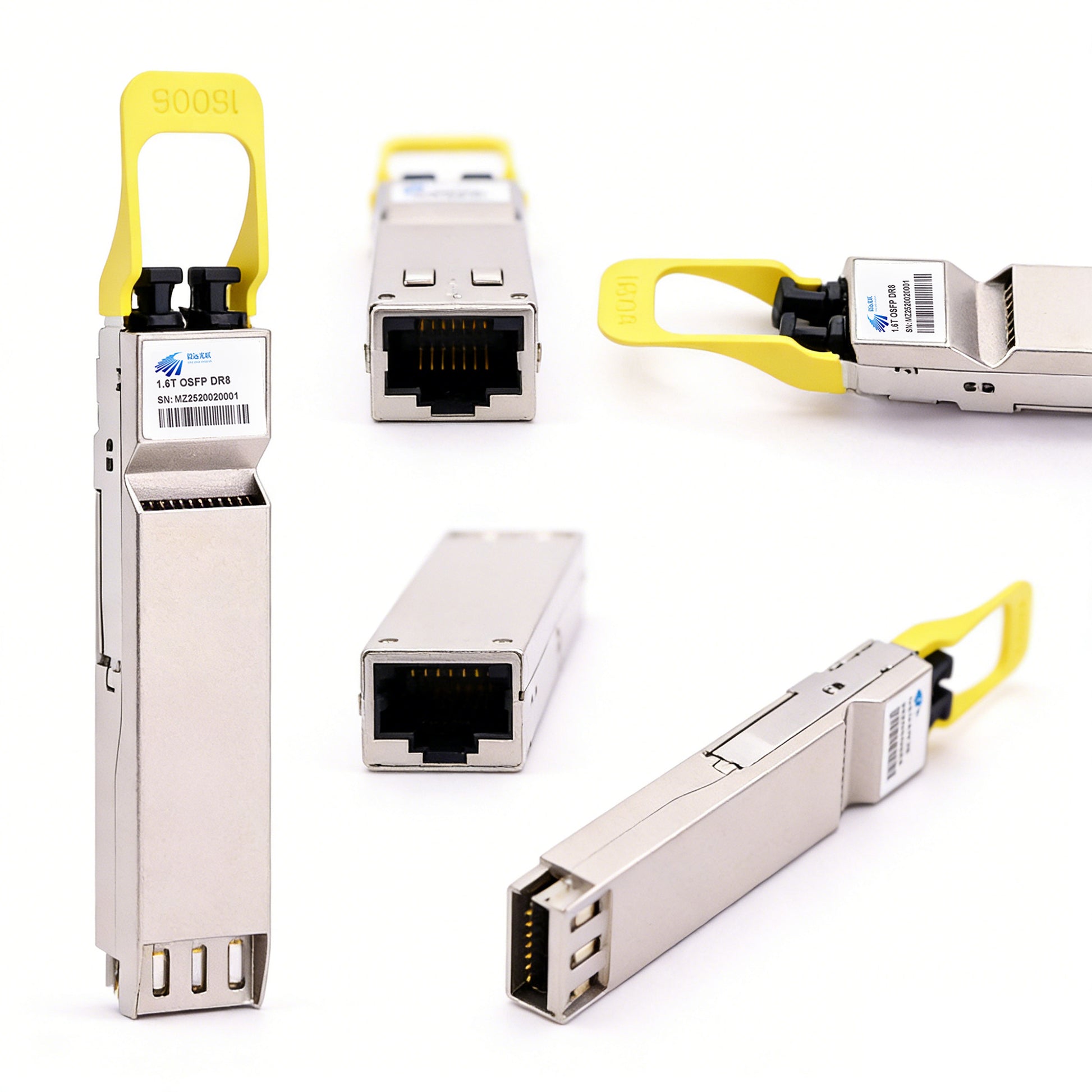

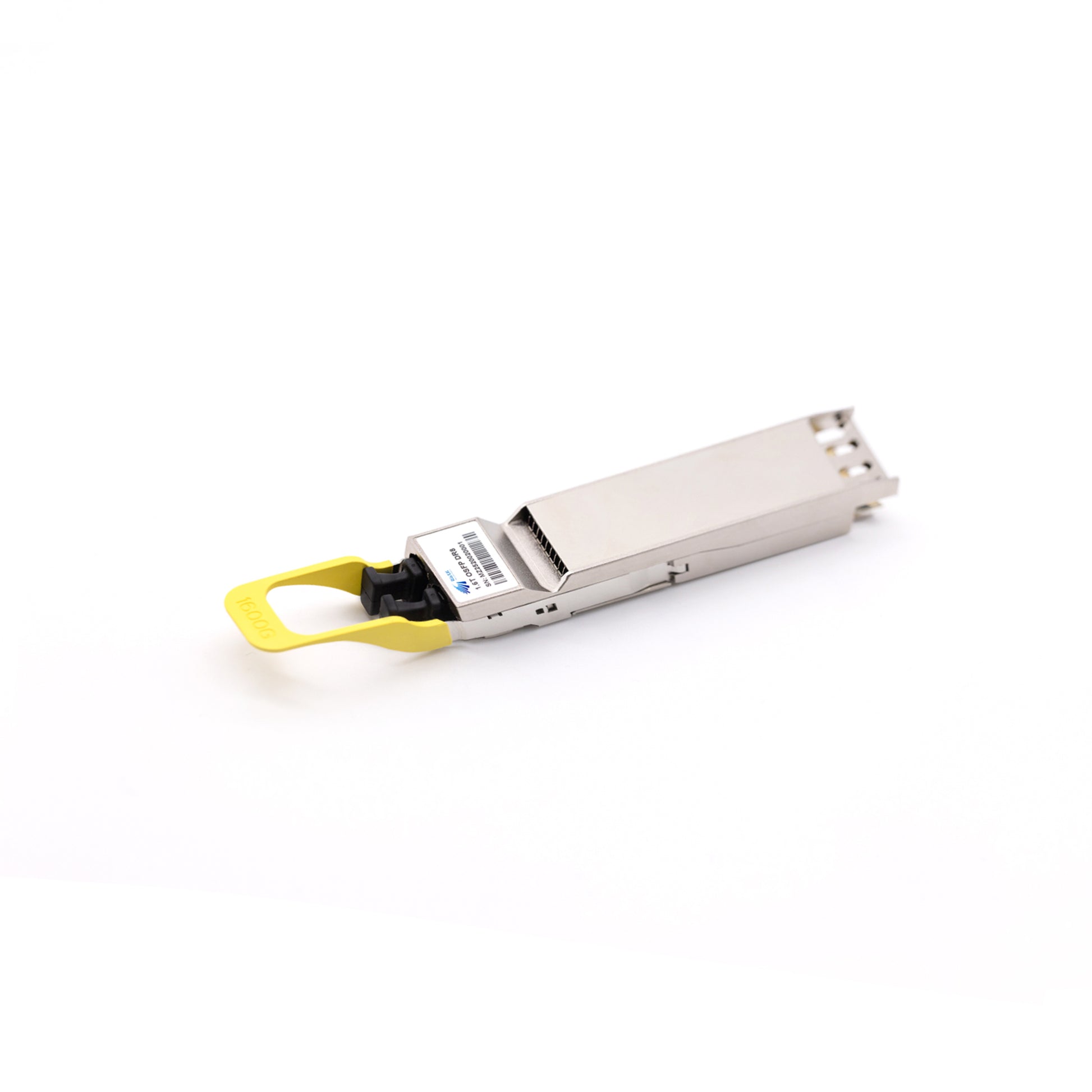

Yiyuan 1.6T OSFP224 DR4/DR8 1310nm 500m MPO-12 Single-Mode Optical Transceiver

Yiyuan 1.6T OSFP224 DR4/DR8 1310nm 500m MPO-12 Single-Mode Optical Transceiver

$2,476.00 USD
$2,476.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

The YYGL 1.6T OSFP224 PAM4 optical transceiver is engineered for next-generation AI data center interconnects and high-density core network deployments. Operating at 1310nm over single-mode fiber (SMF) with a reach of up to 500m, it delivers 1.6Tbps aggregate bandwidth via 8×200G PAM4 electrical lanes and dual 4×200G PAM4 optical ports through Dual MPO-12/APC connectors.

Key Features:

  • Form factor: OSFP224 (800G/1.6T capable)
  • Data rate: 1.6Tbps (8×200G-PAM4)
  • Wavelength: 1310nm | Distance: 500m over SMF
  • Connector: Dual MTP/MPO-12 APC
  • Power consumption: ≤24W
  • DOM (Digital Optical Monitoring) supported
  • Operating temperature: 0~70°C
  • Protocol: OSFP MSA, CMIS Rev 5.2, IEEE 802.3bs
  • Compatible with: Cisco, Arista, NVIDIA/Mellanox, Juniper, Dell
  • Certifications: RoHS, CE, Class 1 Laser Safety
  • Warranty: 2-year hardware warranty + lifetime technical support

Ideal for AI computing clusters, data center interconnect (DCI), and high-performance switching fabrics requiring ultra-high-density optical connectivity.

Contact us for bulk pricing, compatibility verification, or custom configurations.

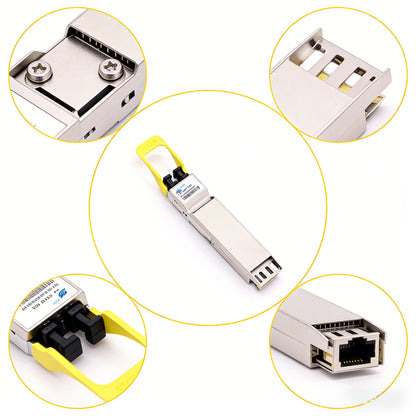

key 1.6T 2xDR4/DR8 OSFP224 PAM4 1310nm 500m DOM Dual MPO-12/APC Single-mode Optical Module
Model Number 1.6T OSFP DR8
Type OSFP
Brand Name YYGL
Place of Origin Hubei, China
Use Data Center Interconnect (DCI), AI Computing Cluster
Warranty Time 2-year warranty, lifetime technical support
Network Core Network Architecture
Port 1.6T
Power Source 3.3V
Connector Type Dual MTP/MPO-12 APC
Power - Minimum Receivable ≤24W
Frequency Range 1.6Tbps (8x200G)
Package Type: OSFP
Transmission Distance: 500m
Wavelength: 1310nm
Interface Type: Dual MTP/MPO-12 APC
Power Consumption: ≤24W
Transmitter Type: Siph
Detector Type: PIN
Fiber Mode: Single-mode SMF
Modulation (Electrical Port): 8x200G-PAM4
Modulation (Optical Port): Dual 4x200G-PAM4
Operating Temperature: 0~70°C (32~158°F)
Protocol: OSFP MSA, CMIS Rev 5.2, IEEE 802.3bs
Compatible Brands: Cisco, Arista, Mellanox, Juniper, Dell
Certification: RoHS, CE, Class 1 Laser Safety

Product features

Technical Specifications：

Parameter Specification
Data Rate 1.6Tbps (2×800G)
Form Factor OSFP224
Modulation PAM4
Center Wavelength 1310nm
Transmission Distance 500m
Fiber Type Single-Mode Fiber (SMF)
Connector Type Dual MPO-12/APC
Digital Diagnostics DOM Supported
Operating Temperature 0°C ~ 70°C
Supply Voltage 3.3V
Compliance IEEE 802.3, MSA

Compatibility

Brand Switch Model
Cisco Nexus 9000 Series
Huawei CloudEngine CE9000 Series
Juniper QFX5220 Series
Arista 7800R3 Series
Nokia 7750 SR Series
Compatible with all MSA-compliant 1.6T OSFP224 ports. Please verify with your network equipment vendor before deployment.

Applications

Data Center Interconnect (DCI) — High-density 1.6T connectivity for hyperscale data centers
Cloud Computing — Ultra-high bandwidth backbone links for cloud service providers
5G Fronthaul / Backhaul — Supporting next-generation 5G network infrastructure
AI & HPC Clusters — Low-latency, high-throughput interconnects for AI training and HPC workloads
Enterprise Core Networks — Scalable backbone upgrades for large enterprise environments
