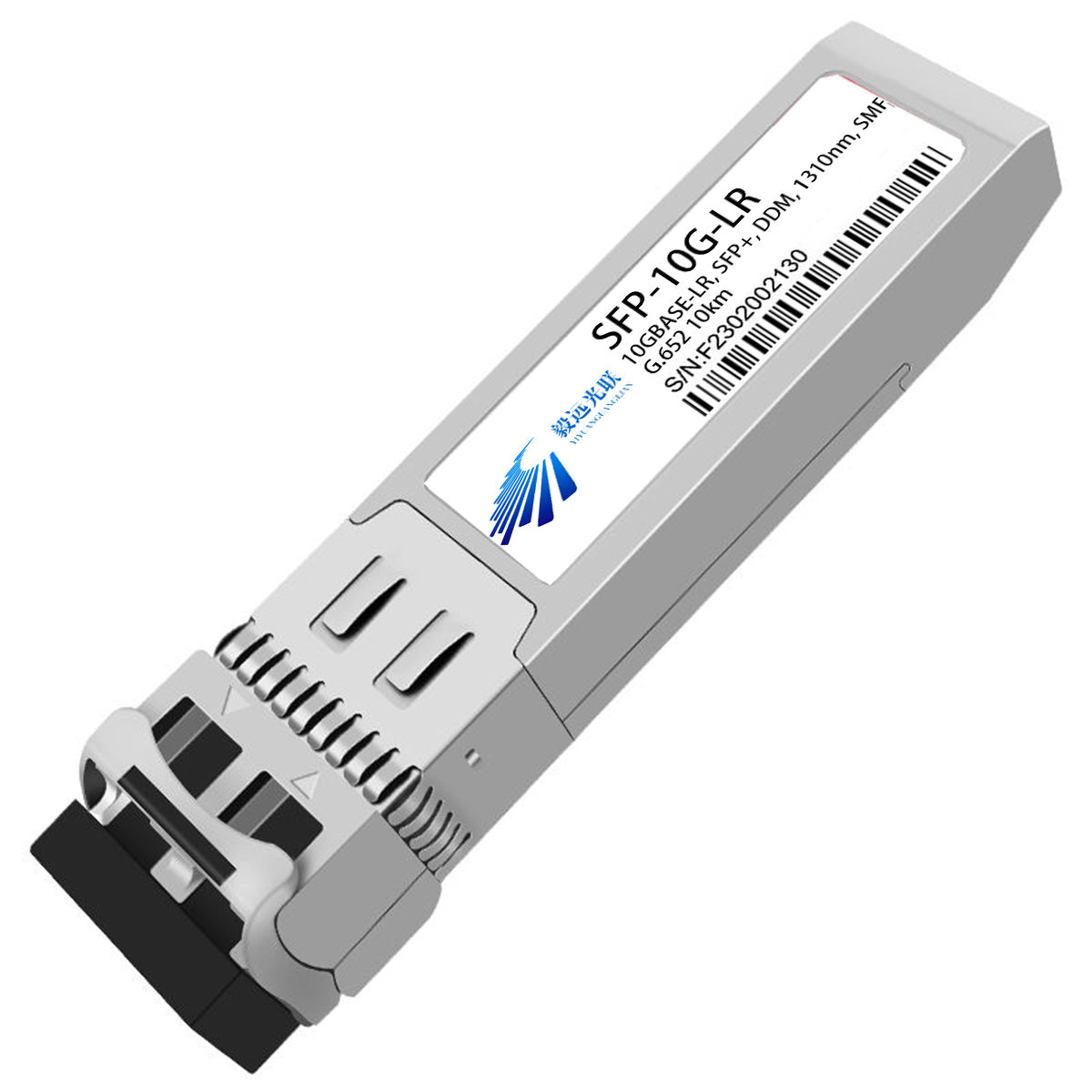

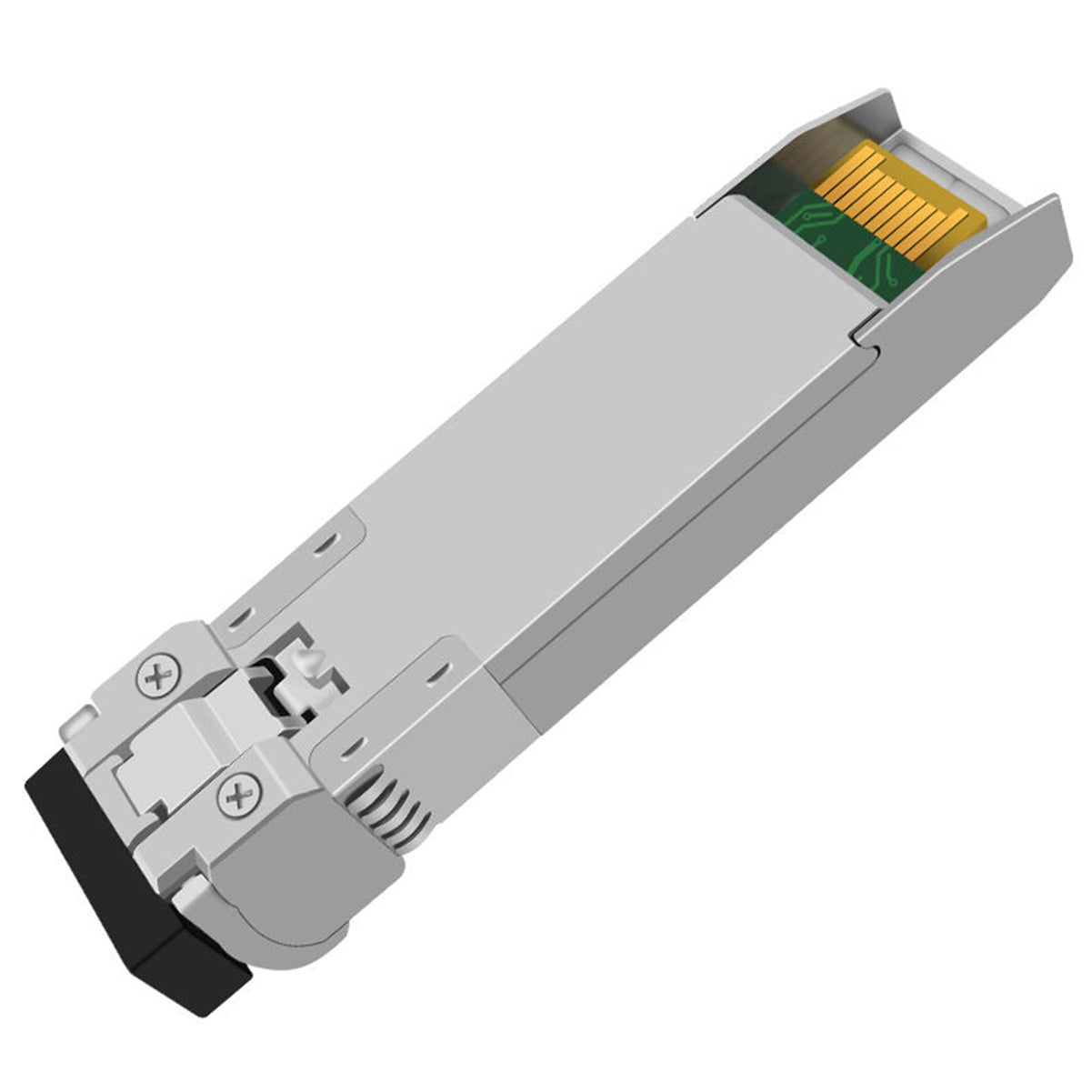

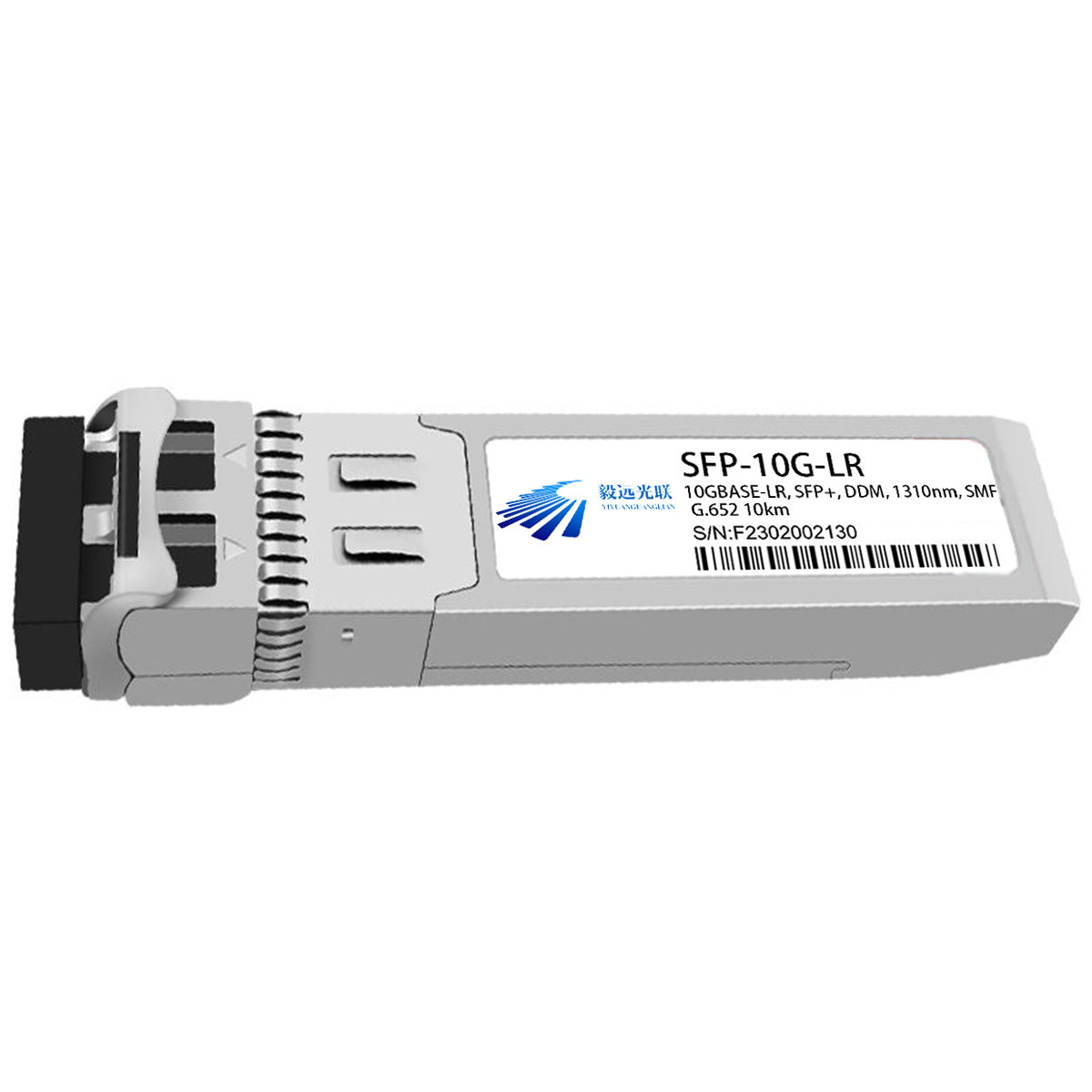

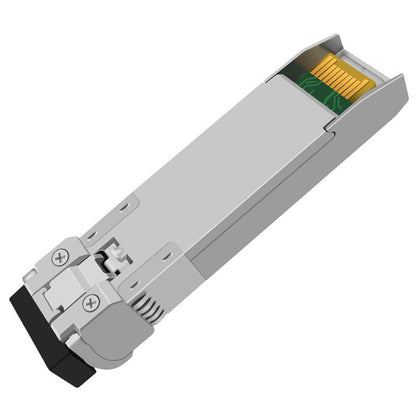

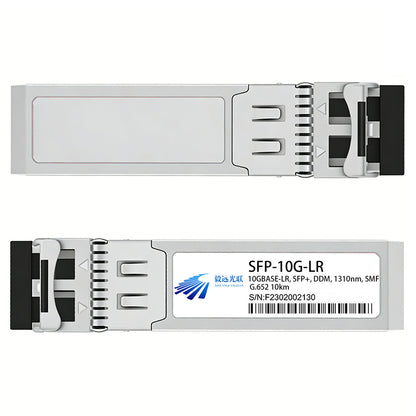

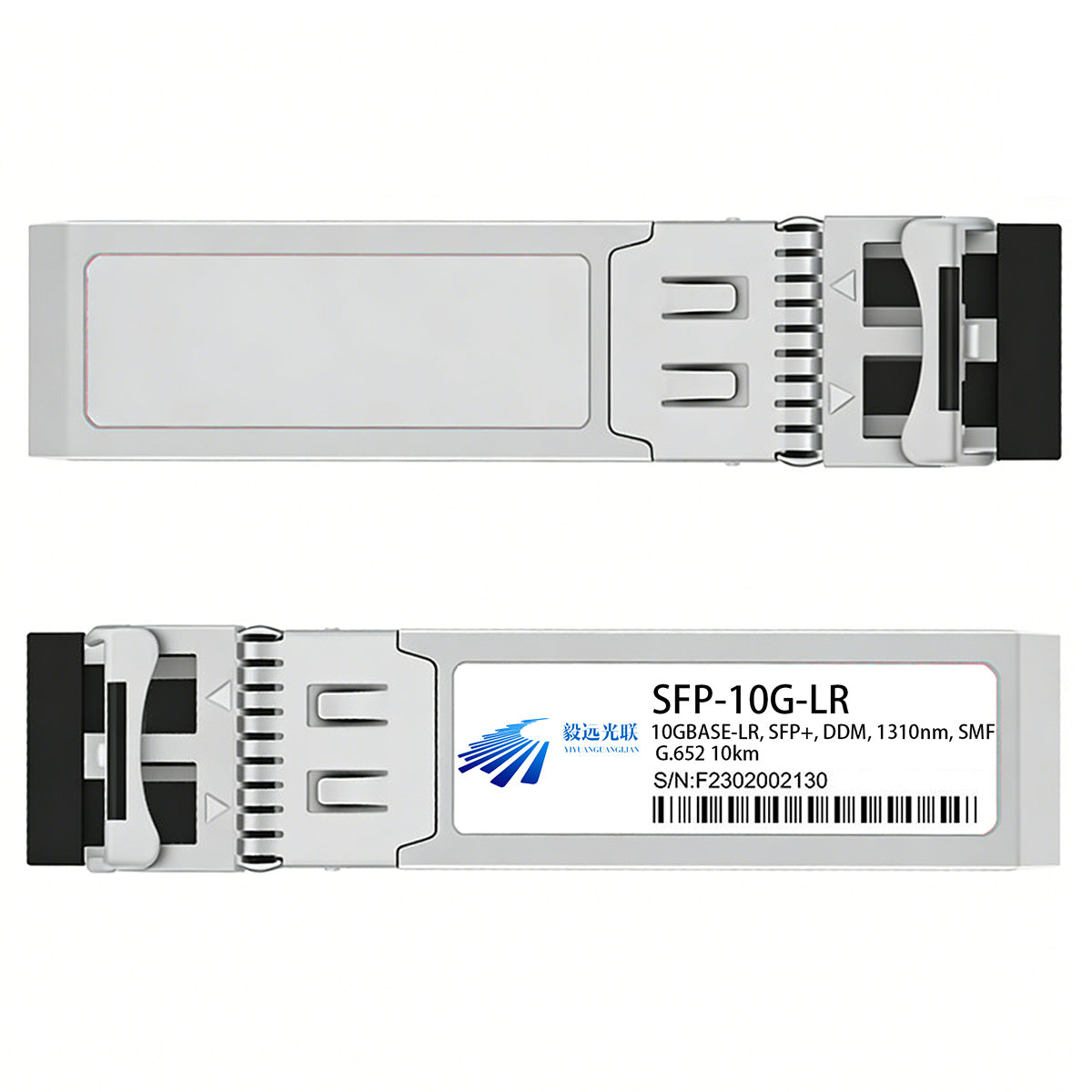

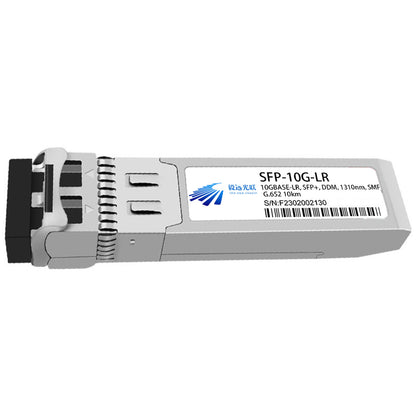

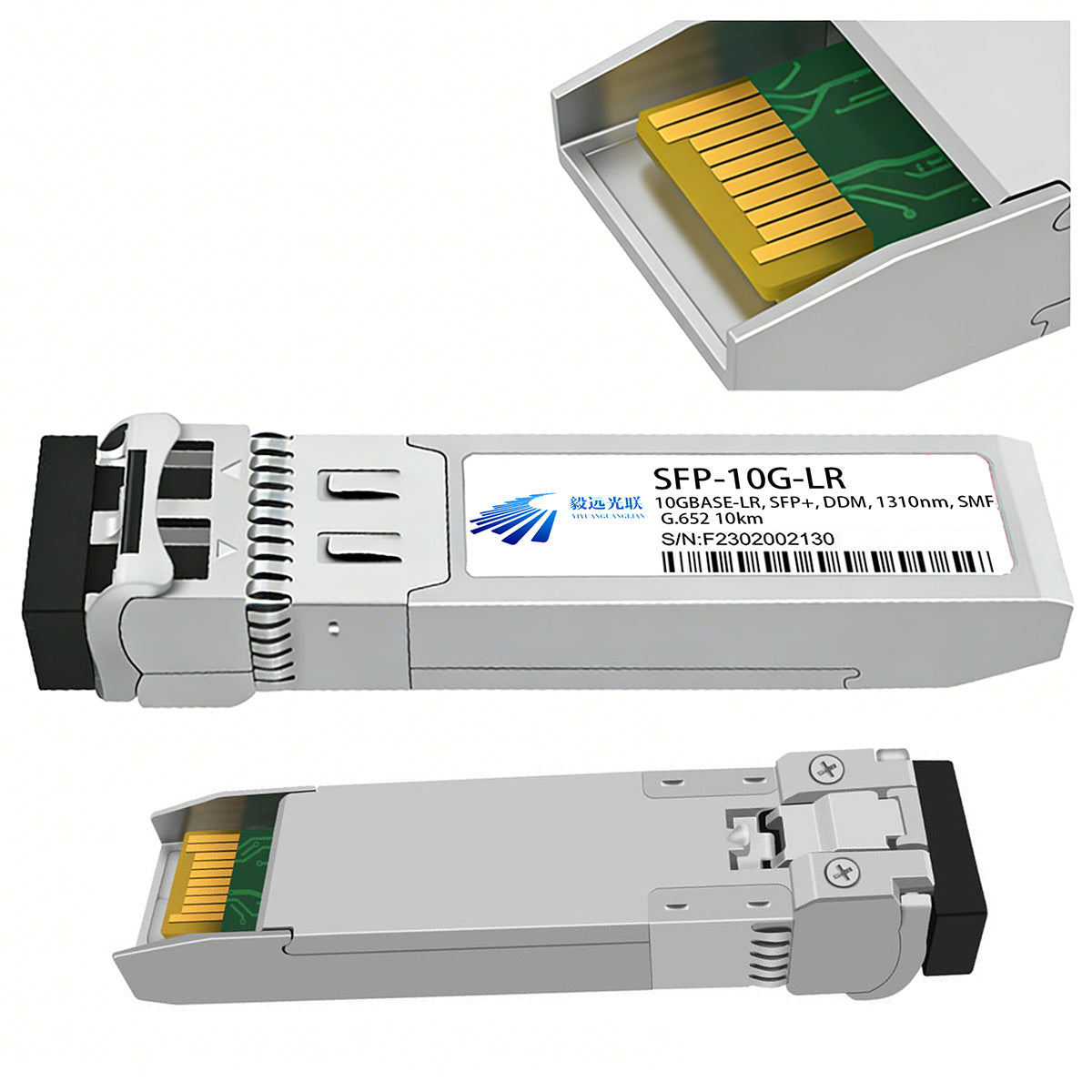

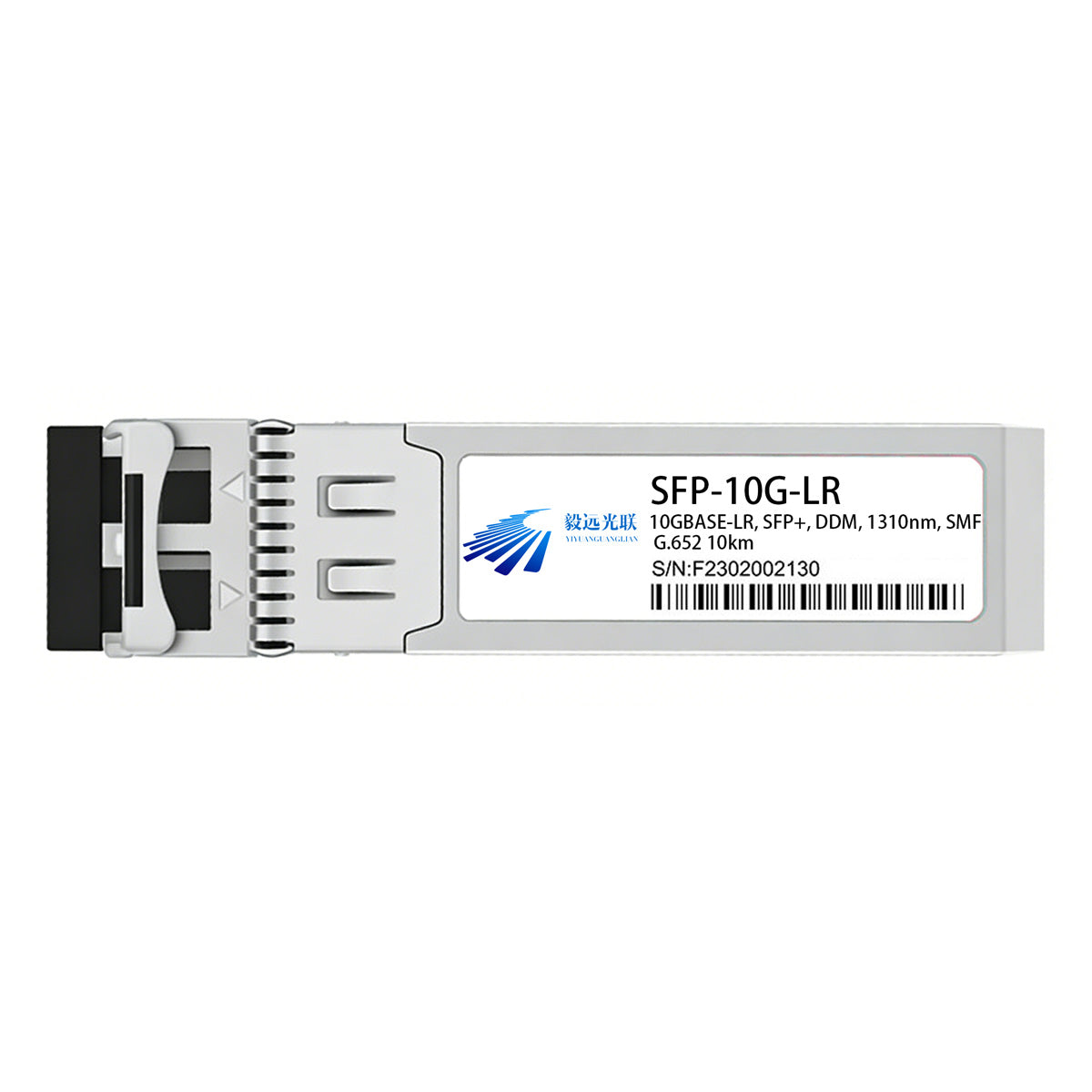

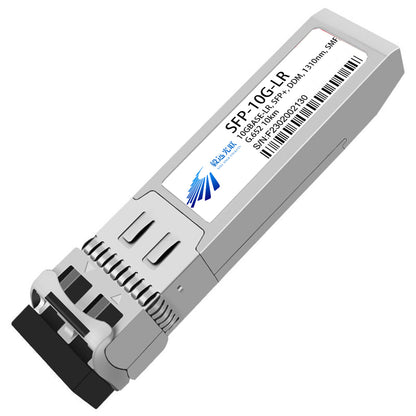

10G SFP+ LR 1310nm 10km DOM LC Duplex Single-Mode Optical Module Transceiver
10G SFP+ LR 1310nm 10km DOM LC Duplex Single-Mode Optical Module Transceiver
10G SFP+ LR Single-Mode Optical Module | 1310nm | 10km | DOM | LC Duplex
The Yiyuan Guanglian 10G SFP+ LR optical module is engineered for long-reach single-mode fiber transmission in enterprise data centers, campus networks, and metropolitan area networks. Operating at 1310nm wavelength with LC Duplex interface, it supports a maximum transmission distance of 10 kilometers over G.652 single-mode fiber — the ideal choice for inter-building and campus-wide 10G connections.
Key Features
- 1310nm DFB Laser: Optimized for single-mode fiber, delivering stable and reliable 10km reach
- Digital Optical Monitoring (DOM): Real-time monitoring of temperature, voltage, bias current, and TX/RX optical power for simplified network operations

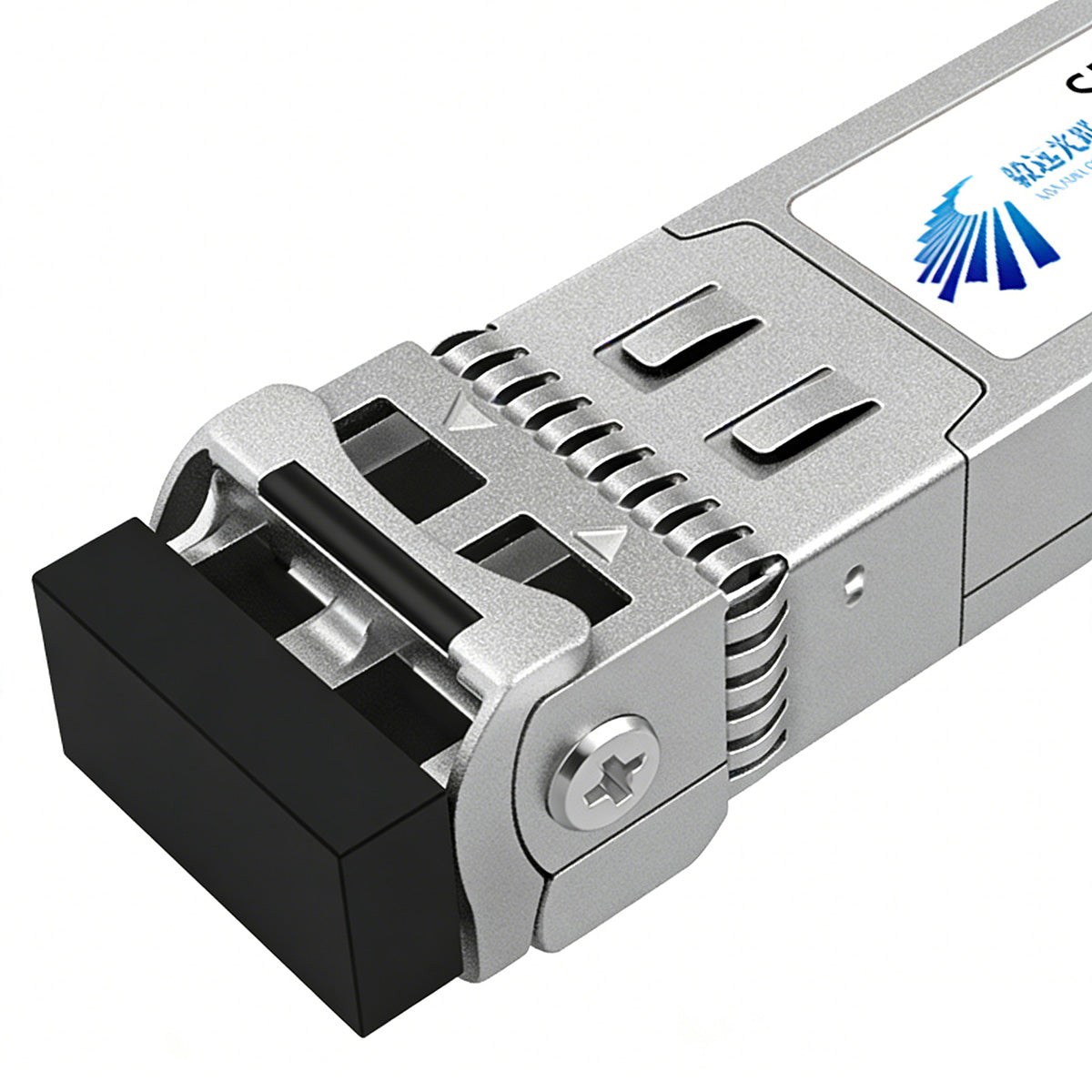

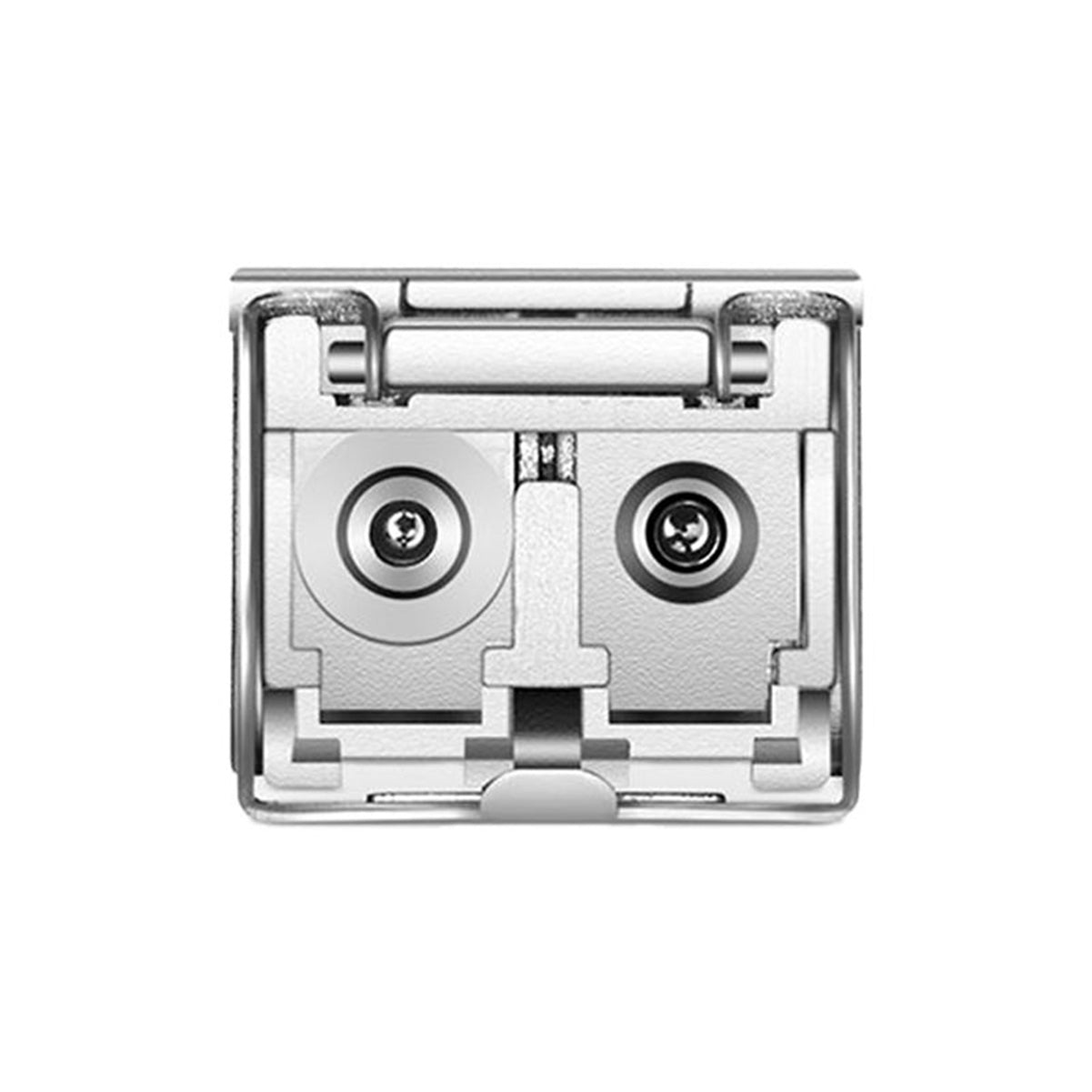

- LC Duplex Interface: Standard connector, fully compatible with mainstream switches, routers, and servers
- Low Power Consumption: Compliant with SFP+ MSA and IEEE 802.3ae standards, plug-and-play ready
- Wide Operating Temperature Range: 0°C ~ 70°C commercial-grade temperature range
- RoHS Compliant: Environmentally responsible manufacturing
Technical Specifications
| Parameter | Specification |
|---|---|
| Data Rate | 10.3125 Gbps |
| Form Factor | SFP+ |
| Wavelength | 1310nm (TX/RX) |
| Fiber Type | Single-Mode (SMF) G.652 |
| Transmission Distance | 10km |
| Connector Type | LC Duplex |
| Digital Diagnostics | DOM Supported |
| Supply Voltage | 3.3V |
| Max Power Consumption | 1.0W |
| Operating Temperature | 0°C ~ 70°C |
| Standards | SFP+ MSA, IEEE 802.3ae, RoHS |
Applications

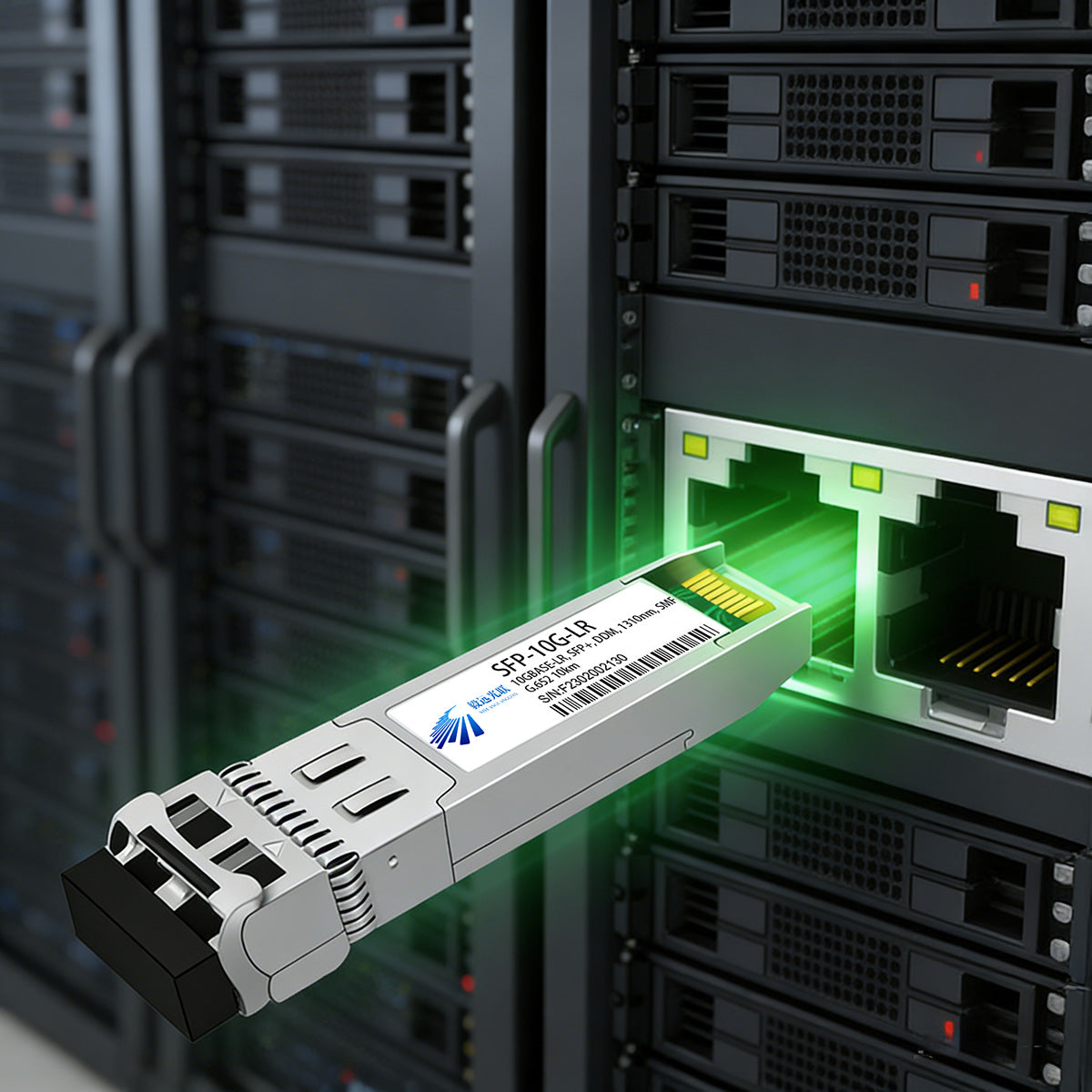

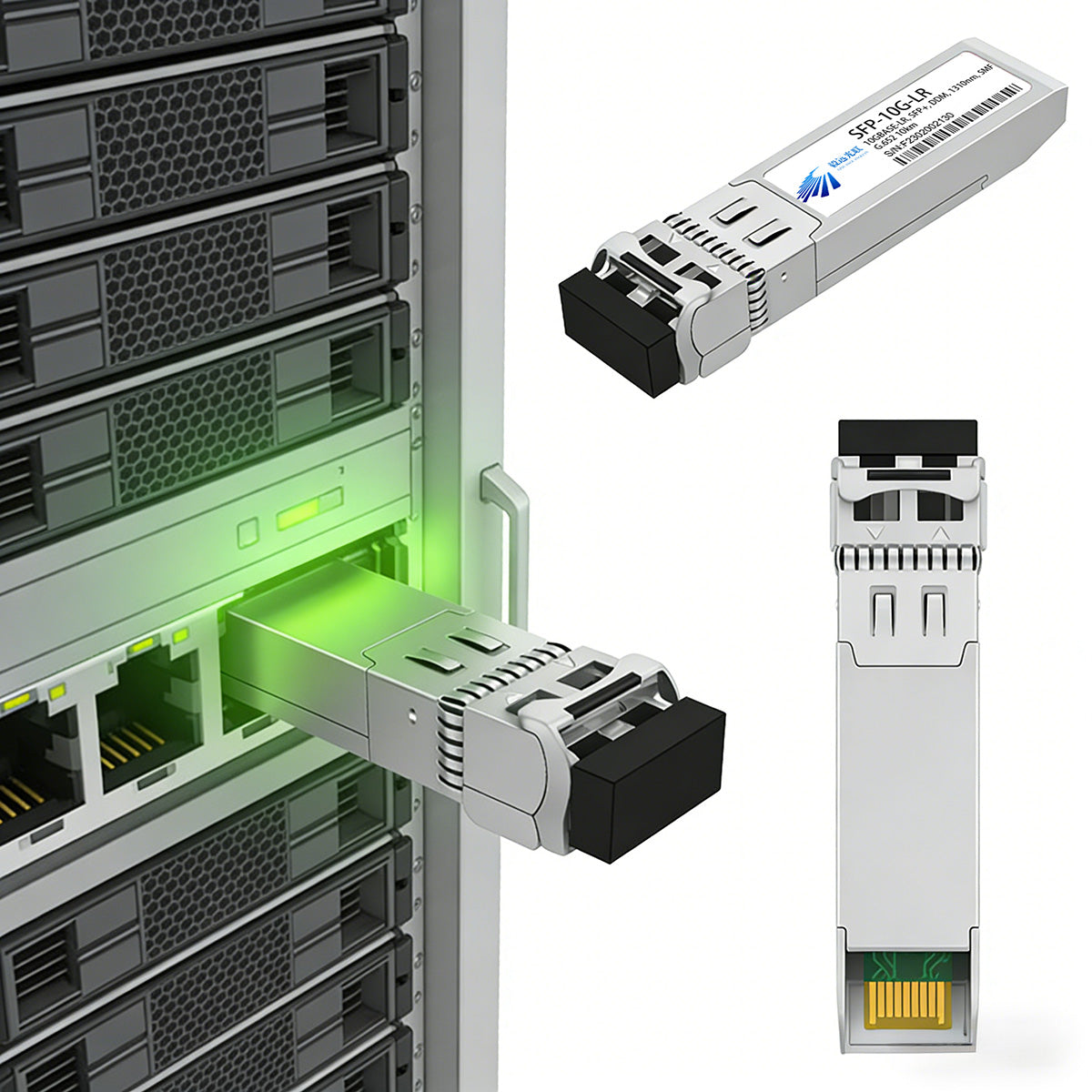

Widely deployed in enterprise data center inter-rack connections, campus network aggregation, metropolitan area network (MAN) links, and 10G server uplinks requiring distances beyond 300m.
Compatible with Cisco, Huawei, H3C, Juniper, Arista, Dell, and other leading-brand equipment. Each module undergoes rigorous testing before shipment to ensure reliable quality. Contact us for product selection assistance.
Product features
Product features
Technical Specifications：
Parameter Specification
Data Rate 1.6Tbps (2×800G)
Form Factor OSFP224
Modulation PAM4
Center Wavelength 1310nm
Transmission Distance 500m
Fiber Type Single-Mode Fiber (SMF)
Connector Type Dual MPO-12/APC
Digital Diagnostics DOM Supported
Operating Temperature 0°C ~ 70°C
Supply Voltage 3.3V
Compliance IEEE 802.3, MSA
Compatibility
Compatibility
Brand Switch Model
Cisco Nexus 9000 Series
Huawei CloudEngine CE9000 Series
Juniper QFX5220 Series
Arista 7800R3 Series
Nokia 7750 SR Series
Compatible with all MSA-compliant 1.6T OSFP224 ports. Please verify with your network equipment vendor before deployment.
Applications
Applications
Data Center Interconnect (DCI) — High-density 1.6T connectivity for hyperscale data centers
Cloud Computing — Ultra-high bandwidth backbone links for cloud service providers
5G Fronthaul / Backhaul — Supporting next-generation 5G network infrastructure
AI & HPC Clusters — Low-latency, high-throughput interconnects for AI training and HPC workloads
Enterprise Core Networks — Scalable backbone upgrades for large enterprise environments
