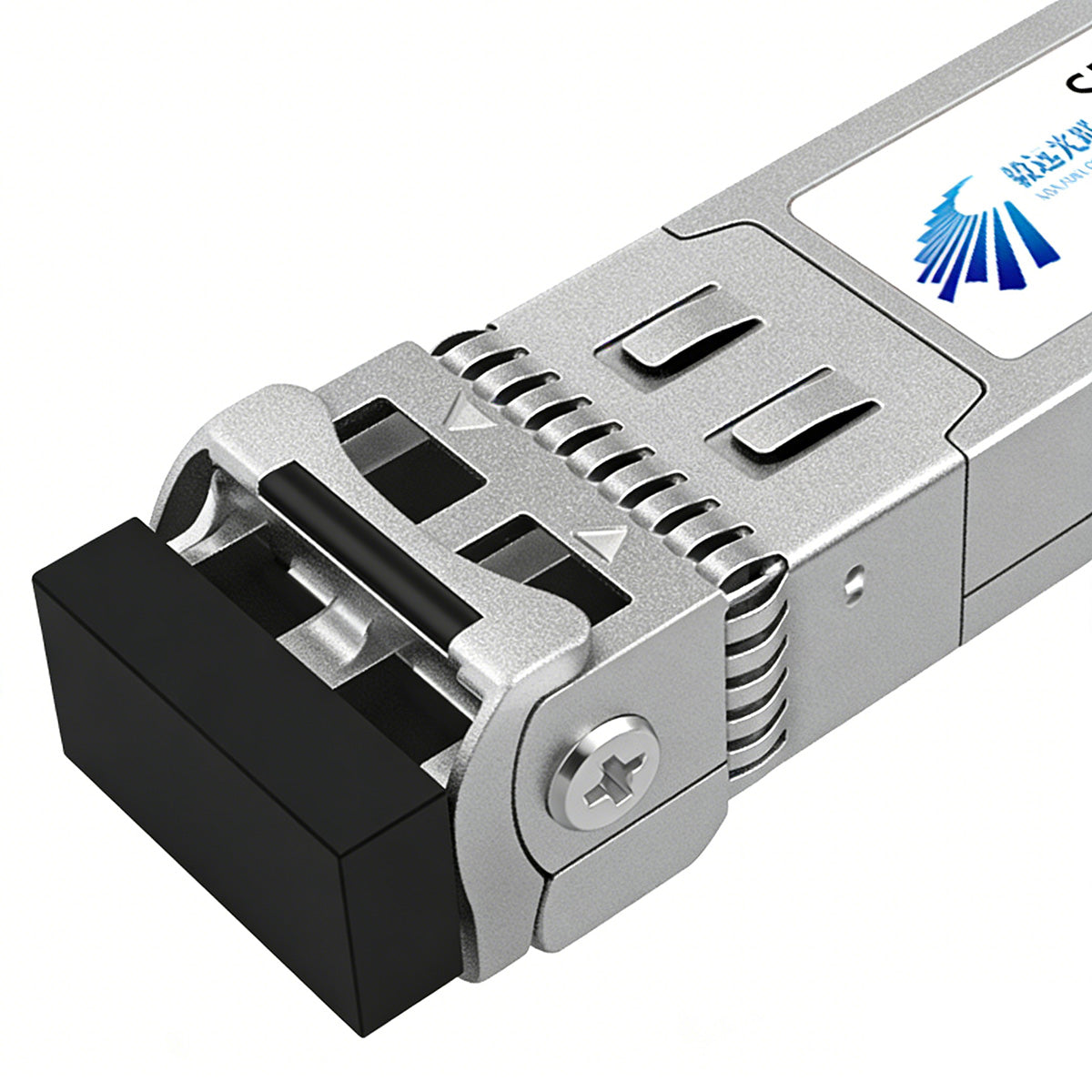

10G SFP+ SR 850nm 300m DOM LC Duplex Multimode Optical Module Transceiver
10G SFP+ SR 850nm 300m DOM LC Duplex Multimode Optical Module Transceiver
10G SFP+ SR Multimode Optical Module | 850nm | 300m | DOM | LC Duplex
The Yiyuan Guanglian 10G SFP+ SR optical module is designed for short-reach multimode fiber transmission in enterprise data centers and campus networks. Operating at 850nm wavelength with LC Duplex interface, it supports a maximum transmission distance of 300 meters over OM3 multimode fiber — the ideal choice for intra-rack and inter-rack 10G connections.
Key Features
- 850nm VCSEL Laser: Optimized for OM3/OM4 multimode fiber, delivering reliable short-reach 10G connectivity
- Digital Optical Monitoring (DOM): Real-time monitoring of temperature, voltage, bias current, and TX/RX optical power for simplified network operations
- LC Duplex Interface: Standard connector, fully compatible with mainstream switches, routers, and servers
- Low Power Consumption: Compliant with SFP+ MSA and IEEE 802.3ae standards, plug-and-play ready
- Wide Operating Temperature Range: 0°C ~ 70°C commercial-grade temperature range
- RoHS Compliant: Environmentally responsible manufacturing
Technical Specifications
| Parameter | Specification |
|---|---|
| Data Rate | 10.3125 Gbps |
| Form Factor | SFP+ |
| Wavelength | 850nm (TX/RX) |
| Fiber Type | Multimode OM3/OM4 (MMF) |
| Transmission Distance | 300m (OM3) / 400m (OM4) |
| Connector Type | LC Duplex |
| Digital Diagnostics | DOM Supported |
| Supply Voltage | 3.3V |
| Max Power Consumption | 1.0W |
| Operating Temperature | 0°C ~ 70°C |
| Standards | SFP+ MSA, IEEE 802.3ae, RoHS |
Applications
Widely deployed in enterprise data center top-of-rack (ToR) interconnects, campus network aggregation, storage area networks (SAN), and 10G server connections.
Compatible with Cisco, Huawei, H3C, Juniper, Arista, Dell, and other leading-brand equipment. Each module undergoes rigorous testing before shipment to ensure reliable quality. Contact us for product selection assistance.
Product features
Product features
Technical Specifications：
Parameter Specification
Data Rate 1.6Tbps (2×800G)
Form Factor OSFP224
Modulation PAM4
Center Wavelength 1310nm
Transmission Distance 500m
Fiber Type Single-Mode Fiber (SMF)
Connector Type Dual MPO-12/APC
Digital Diagnostics DOM Supported
Operating Temperature 0°C ~ 70°C
Supply Voltage 3.3V
Compliance IEEE 802.3, MSA
Compatibility
Compatibility
Brand Switch Model
Cisco Nexus 9000 Series
Huawei CloudEngine CE9000 Series
Juniper QFX5220 Series
Arista 7800R3 Series
Nokia 7750 SR Series
Compatible with all MSA-compliant 1.6T OSFP224 ports. Please verify with your network equipment vendor before deployment.
Applications
Applications
Data Center Interconnect (DCI) — High-density 1.6T connectivity for hyperscale data centers
Cloud Computing — Ultra-high bandwidth backbone links for cloud service providers
5G Fronthaul / Backhaul — Supporting next-generation 5G network infrastructure
AI & HPC Clusters — Low-latency, high-throughput interconnects for AI training and HPC workloads
Enterprise Core Networks — Scalable backbone upgrades for large enterprise environments
