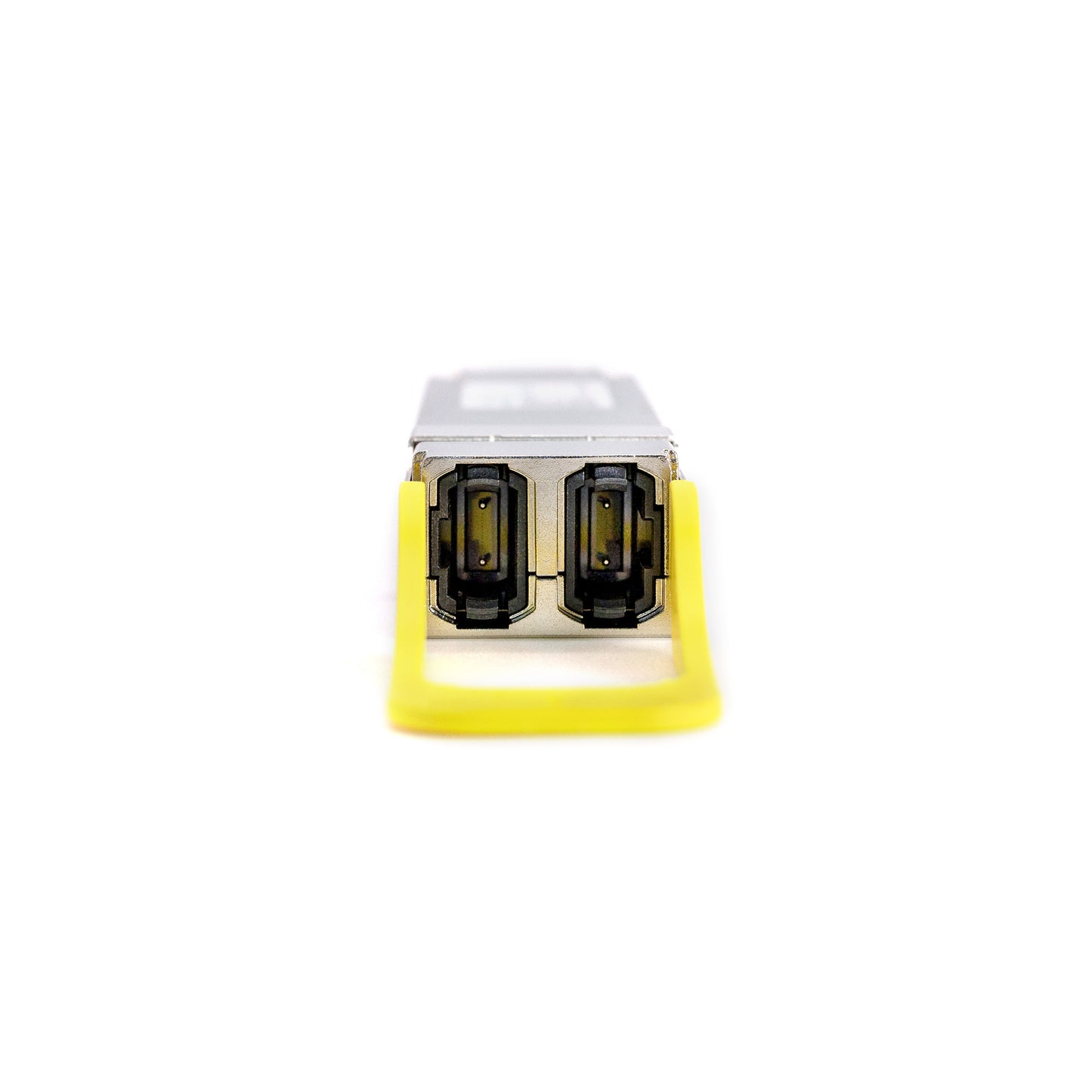

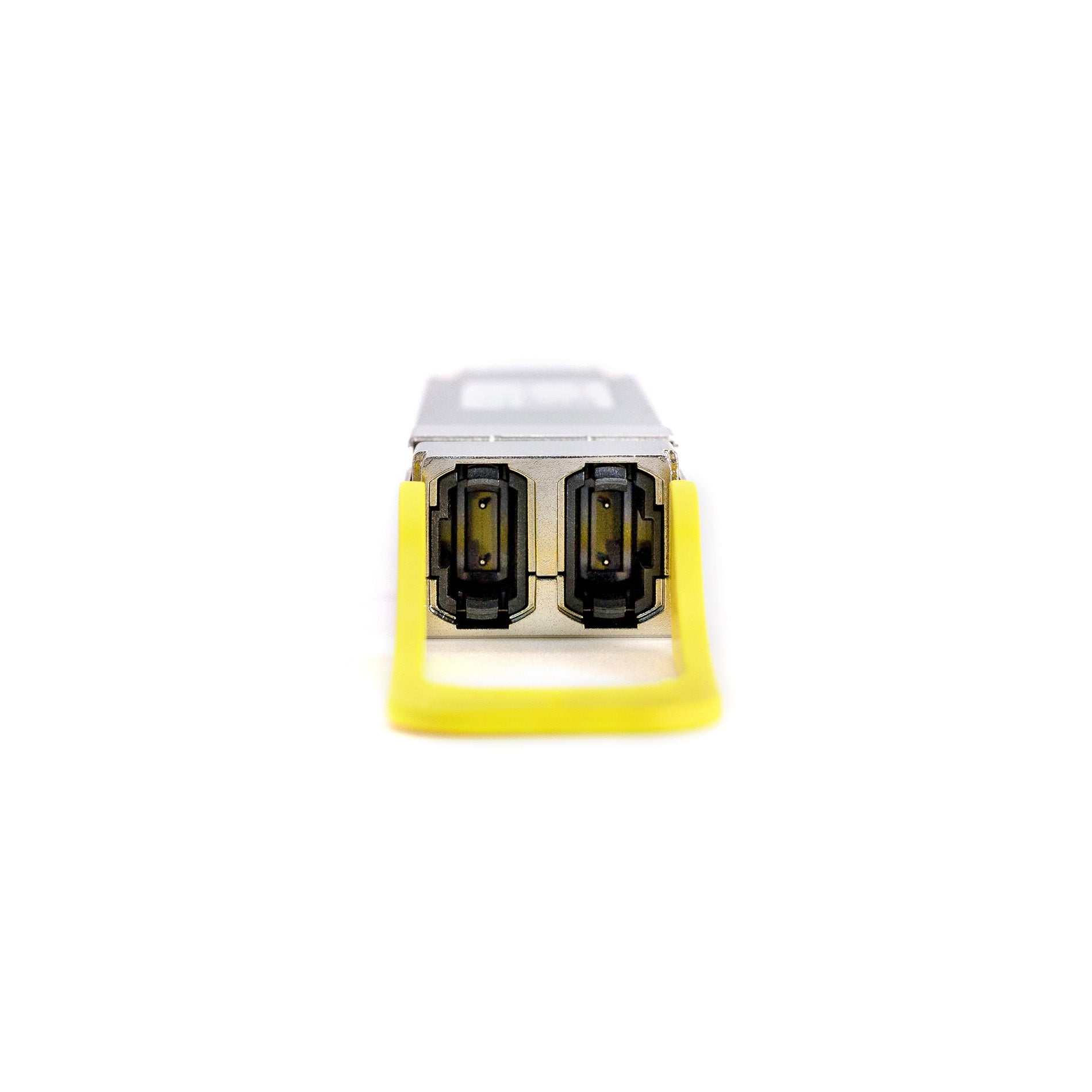

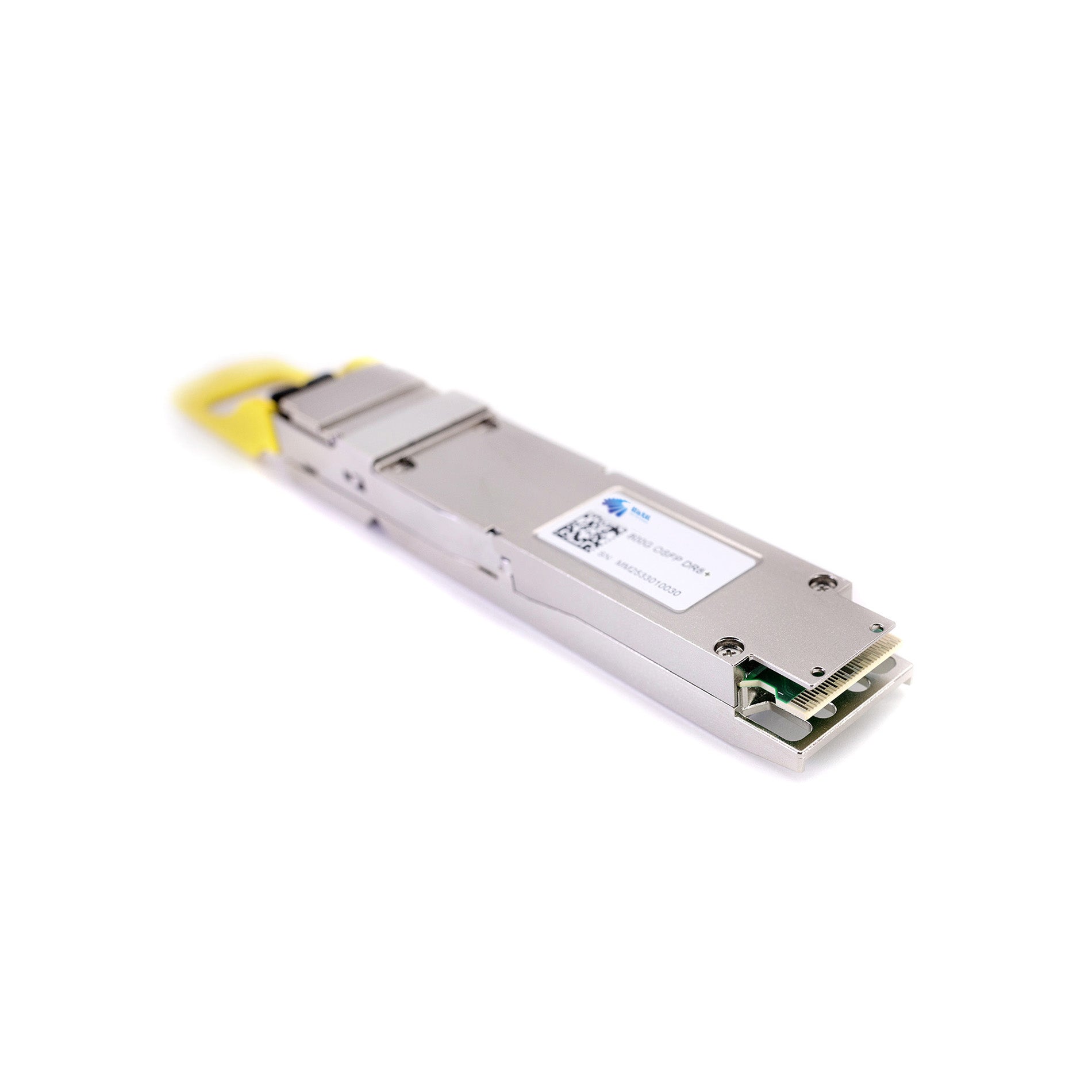

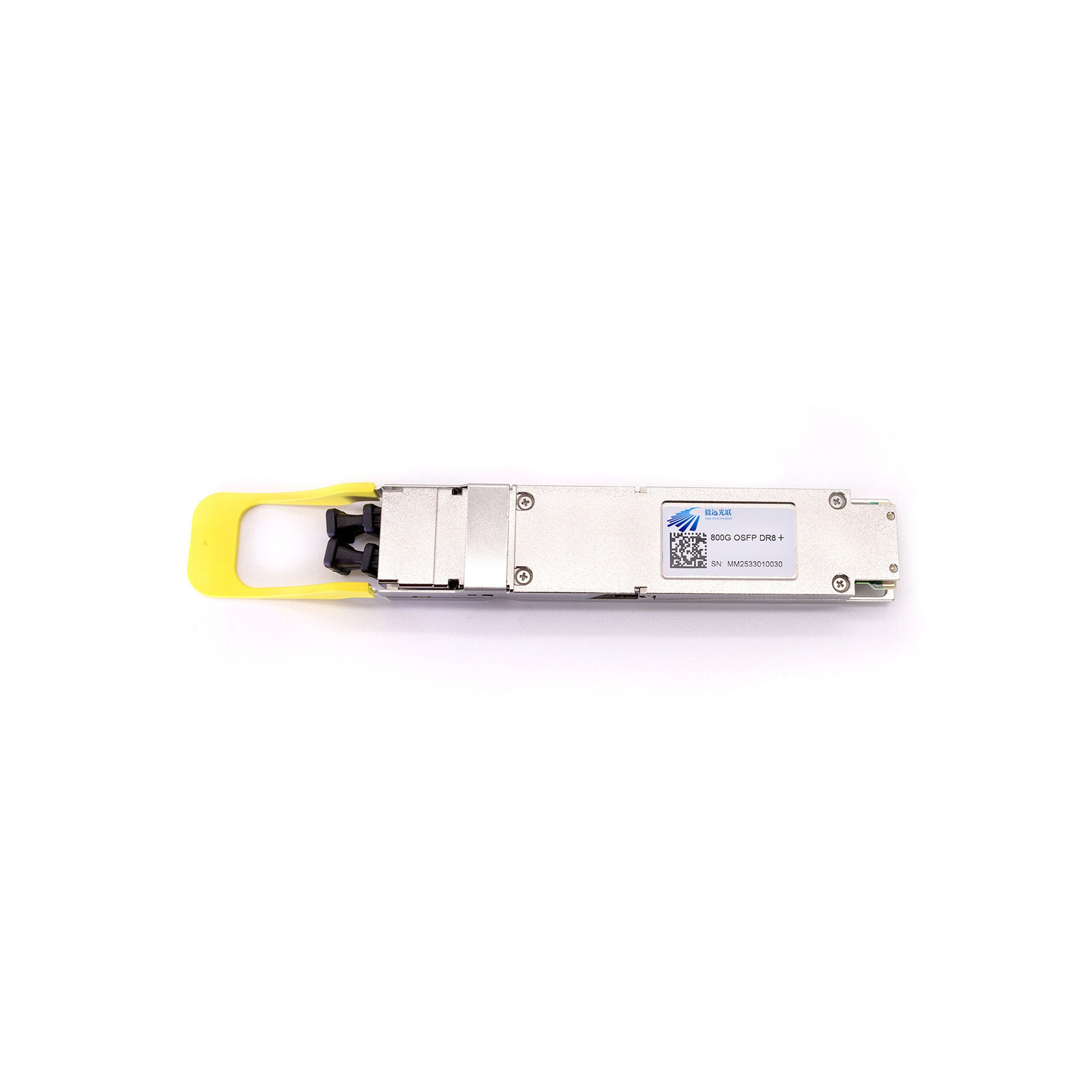

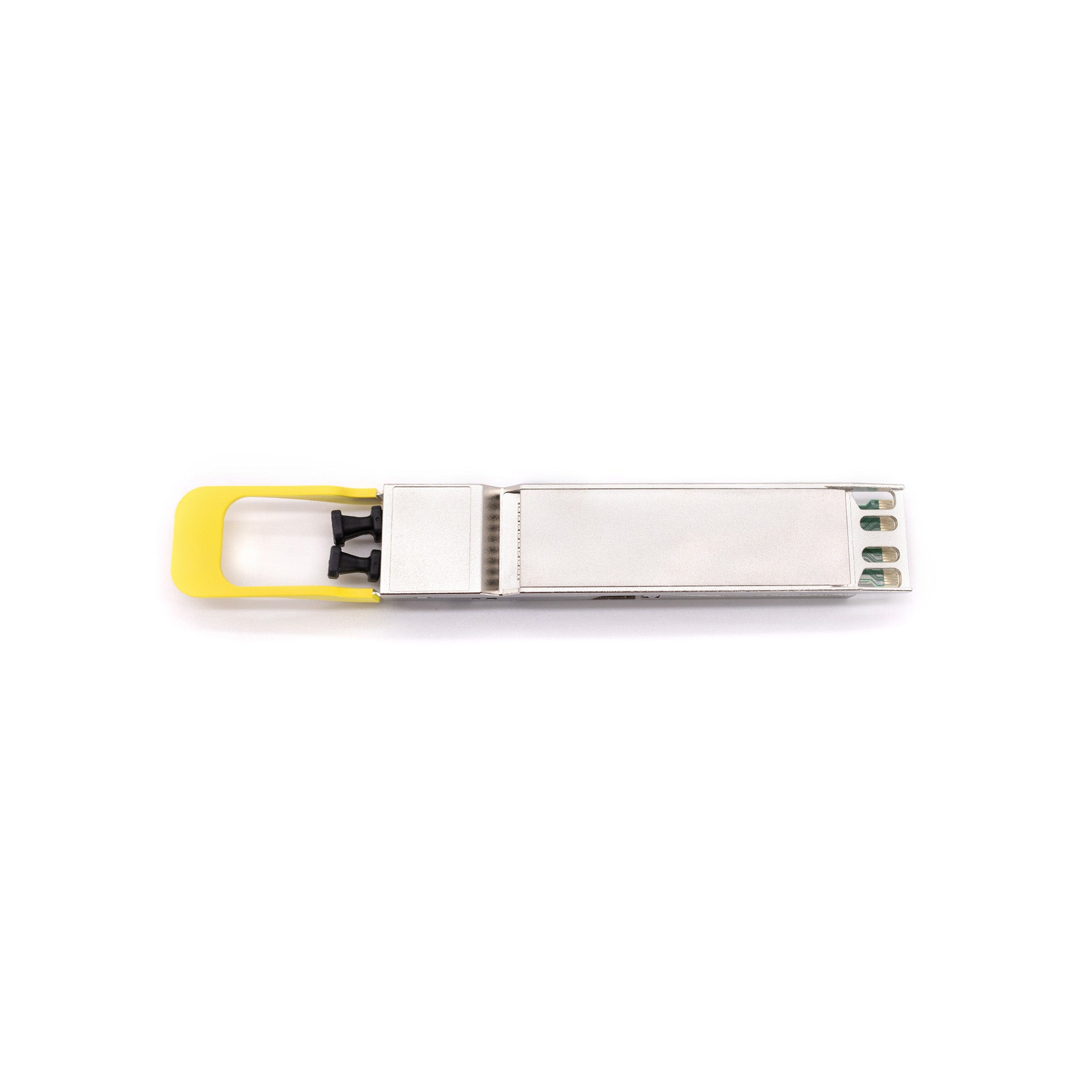

800G OSFP DR8+ PAM4 1310nm 2km DOM Dual MPO-12/APC Single-Mode Optical Module
800G OSFP DR8+ PAM4 1310nm 2km DOM Dual MPO-12/APC Single-Mode Optical Module
800G OSFP DR8+ Single-Mode Optical Module | PAM4 | 1310nm | 2km | DOM | Dual MPO-12/APC
The Yiyuan Guanglian 800G OSFP DR8+ optical module is engineered for hyperscale data centers, AI computing clusters, and high-performance computing (HPC) interconnects. Built on PAM4 modulation with an 8×100G parallel channel architecture, it delivers 800G aggregate bandwidth over single-mode fiber with a maximum reach of 2 kilometers, offering an optimal balance of high density, long reach, and low latency.
Key Features
- Ultra-High Bandwidth: 800Gbps aggregate throughput supporting 8×100G independent parallel transmission, meeting next-generation data center backbone demands
- DR8+ Extended Reach: Up to 2km over single-mode fiber (SMF), extending beyond standard DR8 reach for greater deployment flexibility across campus and inter-building links
- PAM4 Modulation: 8×100G PAM4 parallel architecture delivers high spectral efficiency, low BER, and stable link performance
- Digital Optical Monitoring (DOM): Real-time monitoring of temperature, voltage, bias current, and TX/RX optical power for simplified operations and maintenance
- Dual MPO-12/APC Interface: Standard dual MPO-12/APC connectors, compatible with mainstream single-mode fiber infrastructure
- OSFP Form Factor: High-density OSFP package designed for next-generation high-density switch and router ports
- Low Power Consumption: Compliant with OSFP MSA standards, plug-and-play ready
Technical Specifications
- Data Rate: 800Gbps (8×100G)
- Form Factor: OSFP
- Modulation: PAM4
- Wavelength: 1310nm
- Fiber Type: Single-Mode (SMF, G.652)
- Transmission Distance: 2km
- Connector Type: Dual MPO-12/APC
- Digital Diagnostics: DOM Supported
- Supply Voltage: 3.3V
- Operating Temperature: 0°C ~ 70°C (Commercial Grade)
- Standards: OSFP MSA, CMIS Rev 5.2, IEEE 802.3
Applications
Widely deployed in hyperscale data center interconnects, AI training cluster high-speed fabrics, 5G fronthaul/midhaul networks, high-performance computing (HPC), and enterprise core network backbones.
Compatible with Cisco, Arista, Mellanox, Juniper, Dell, and other leading-brand equipment. Each module undergoes rigorous testing before shipment to ensure reliable quality. Contact us for product selection assistance.
Product features
Product features
Technical Specifications：
Parameter Specification
Data Rate 1.6Tbps (2×800G)
Form Factor OSFP224
Modulation PAM4
Center Wavelength 1310nm
Transmission Distance 500m
Fiber Type Single-Mode Fiber (SMF)
Connector Type Dual MPO-12/APC
Digital Diagnostics DOM Supported
Operating Temperature 0°C ~ 70°C
Supply Voltage 3.3V
Compliance IEEE 802.3, MSA
Compatibility
Compatibility
Brand Switch Model
Cisco Nexus 9000 Series
Huawei CloudEngine CE9000 Series
Juniper QFX5220 Series
Arista 7800R3 Series
Nokia 7750 SR Series
Compatible with all MSA-compliant 1.6T OSFP224 ports. Please verify with your network equipment vendor before deployment.
Applications
Applications
Data Center Interconnect (DCI) — High-density 1.6T connectivity for hyperscale data centers
Cloud Computing — Ultra-high bandwidth backbone links for cloud service providers
5G Fronthaul / Backhaul — Supporting next-generation 5G network infrastructure
AI & HPC Clusters — Low-latency, high-throughput interconnects for AI training and HPC workloads
Enterprise Core Networks — Scalable backbone upgrades for large enterprise environments
