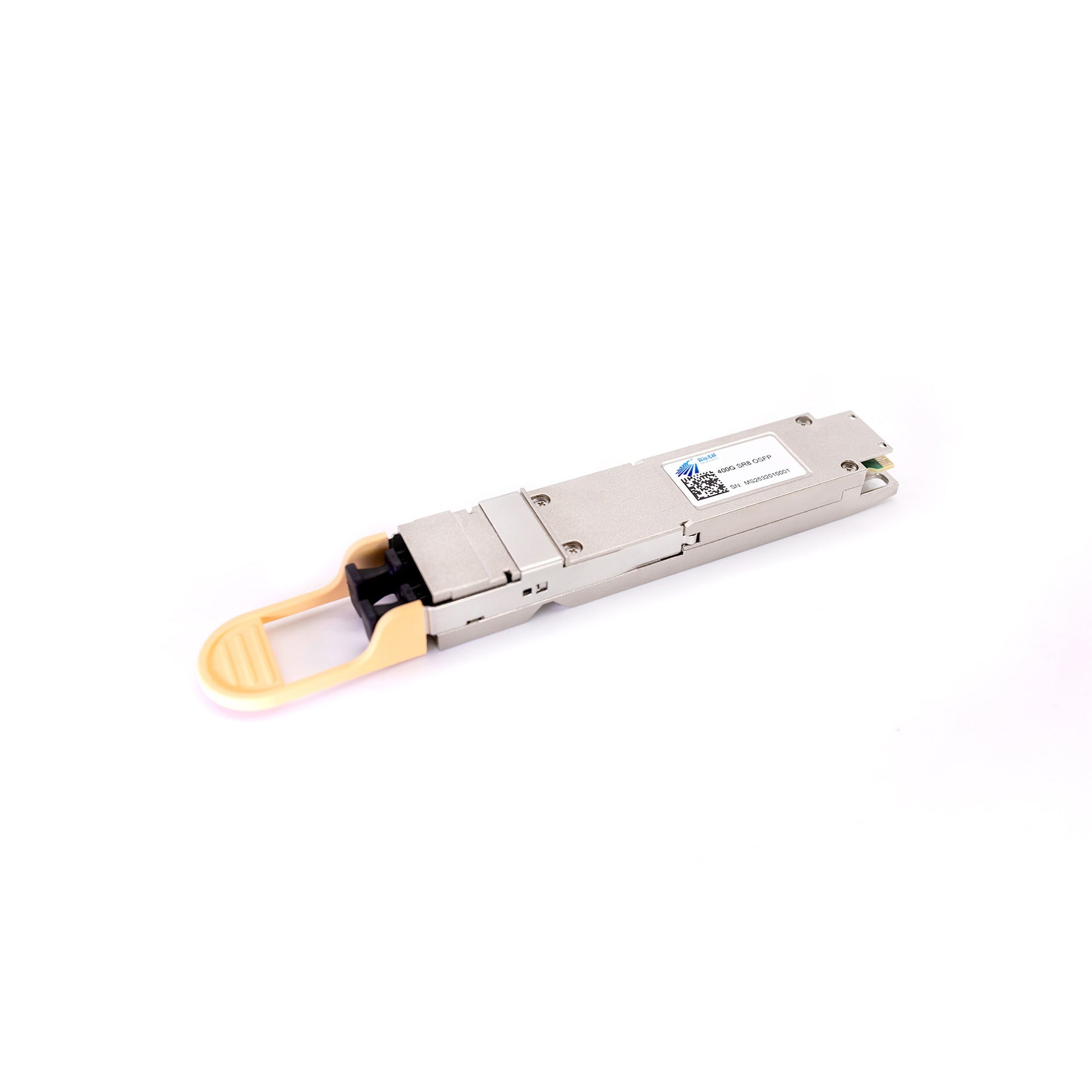

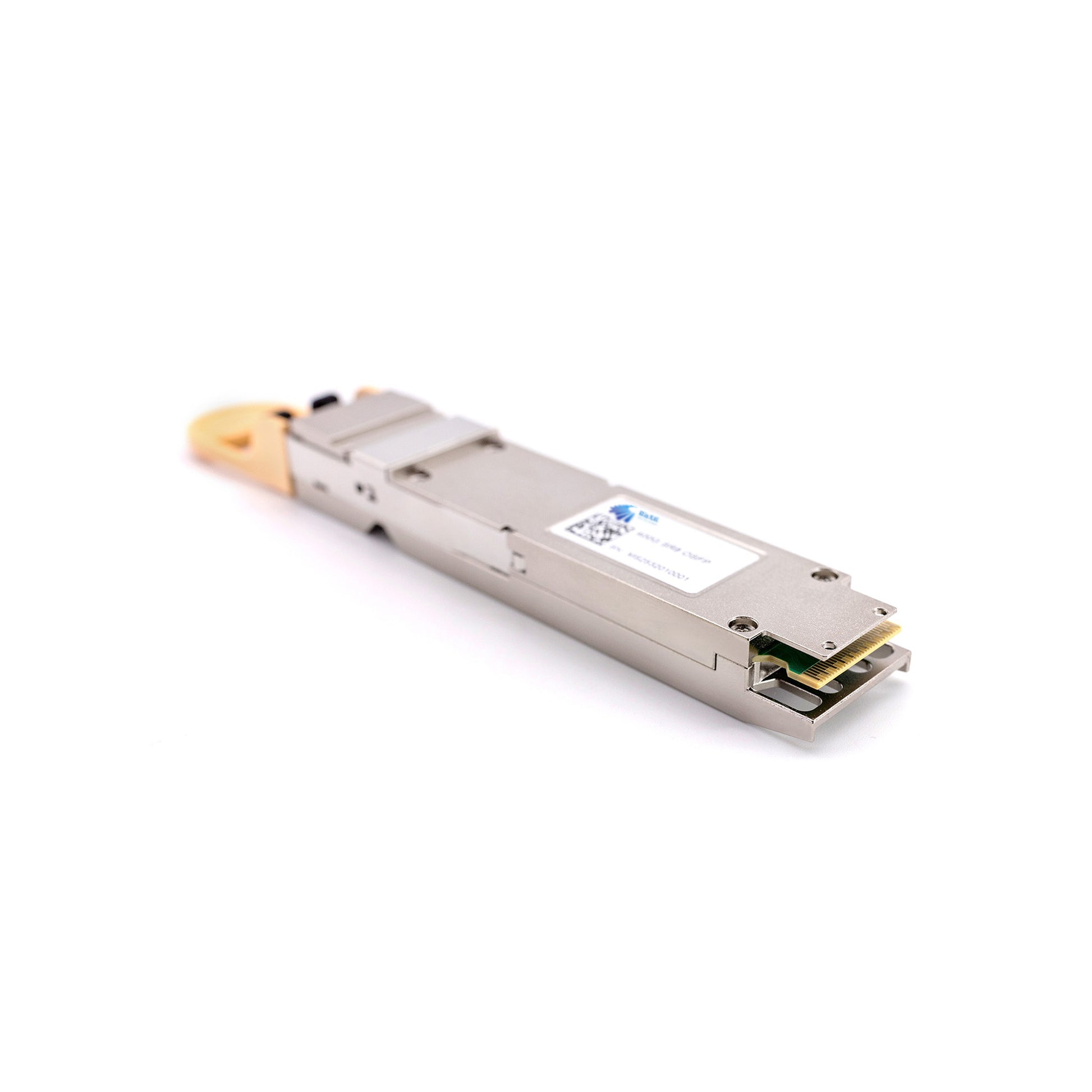

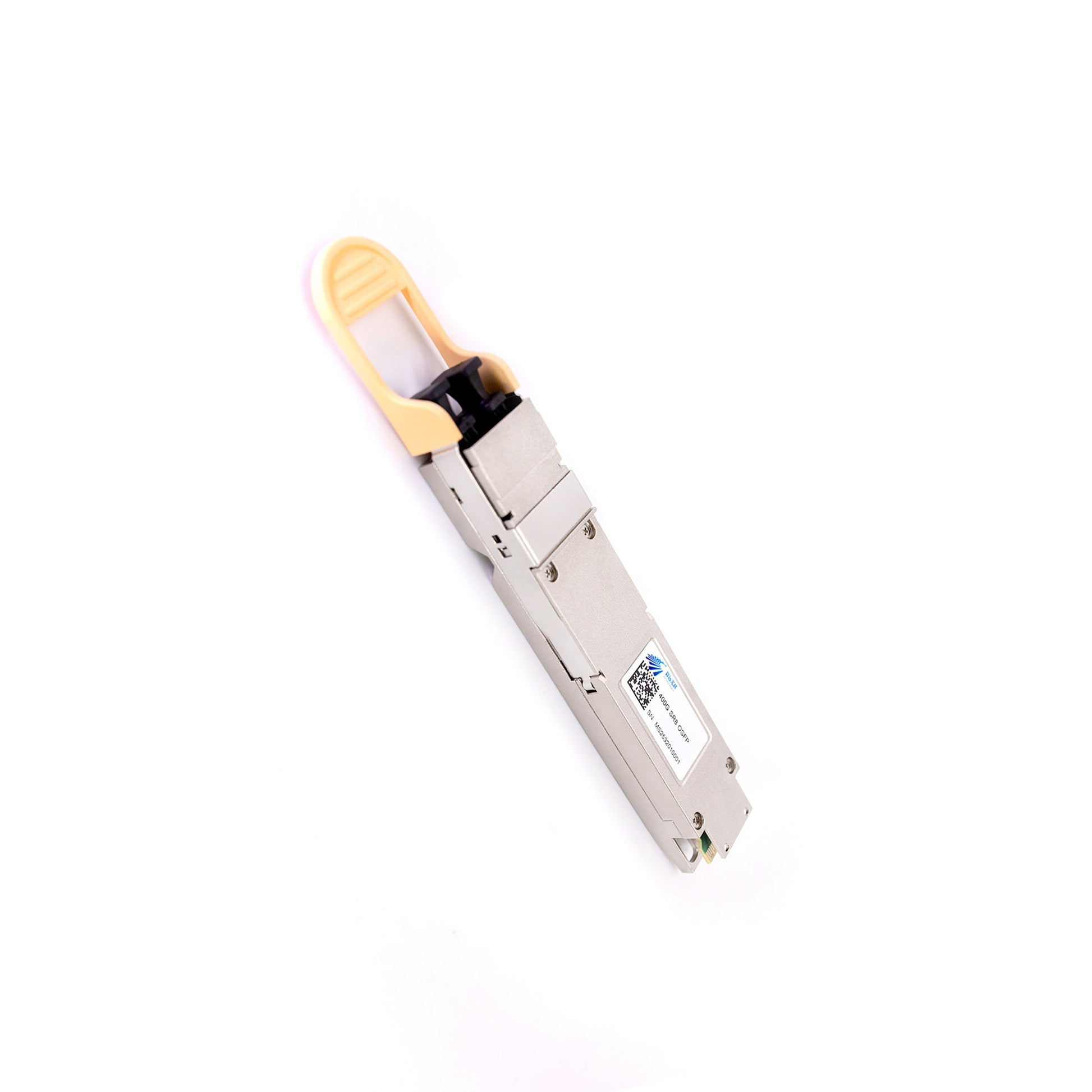

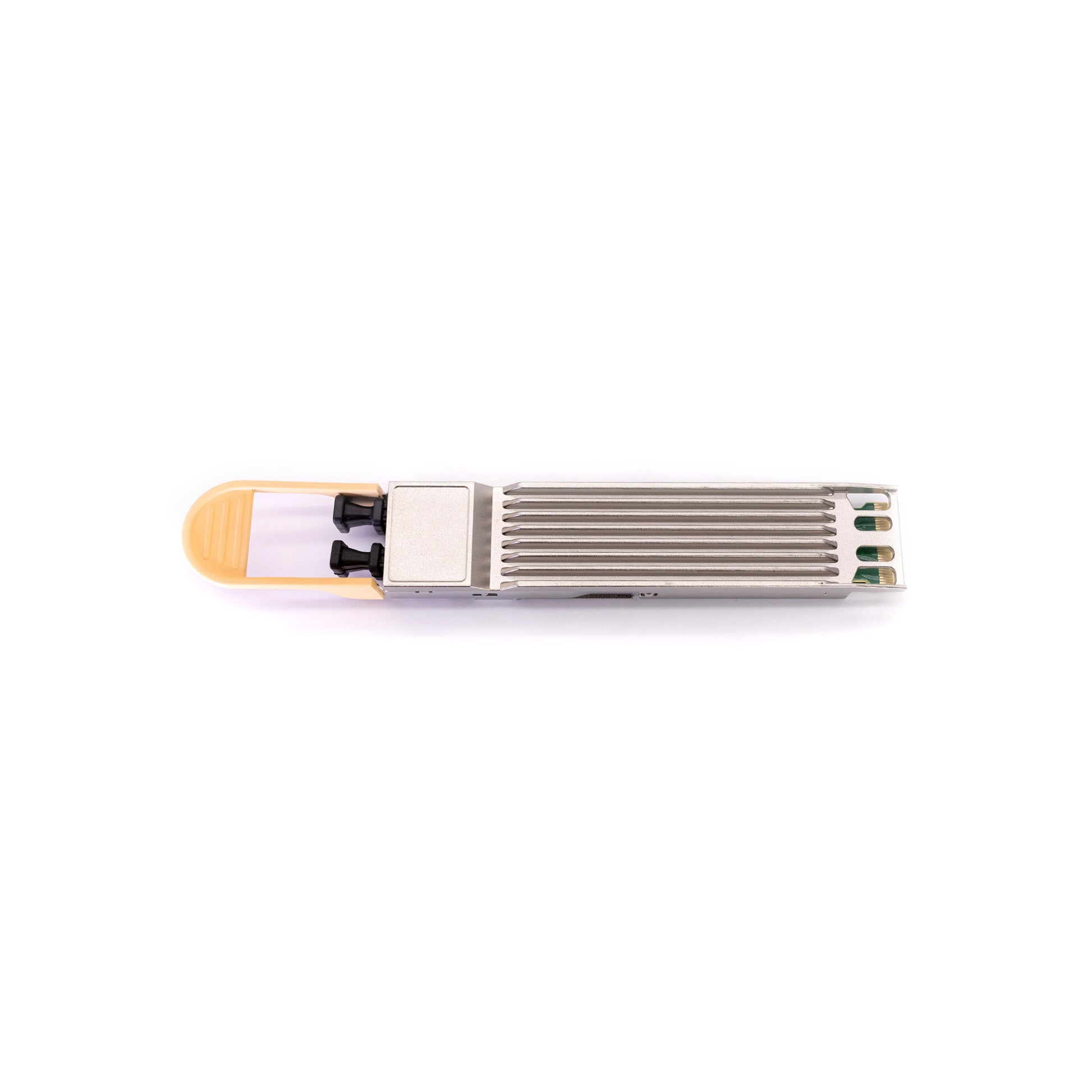

800G OSFP SR8 Multimode Optical Module | PAM4 | 850nm | 100m | DOM | Dual MPO-12/APC
The Yiyuan Guanglian 800G OSFP SR8 optical module is purpose-built for hyperscale data centers and AI computing clusters. Utilizing PAM4 modulation with 8×100G parallel channel architecture, it supports a maximum transmission distance of 100 meters over OM4 multimode fiber, making it the ideal choice for next-generation high-density interconnects.
Key Features
- Ultra-High Bandwidth: 800Gbps aggregate bandwidth, meeting the extreme demands of AI training clusters and high-performance computing environments
- PAM4 Modulation: 8×100G PAM4 parallel architecture for efficient utilization of multimode fiber resources
- Digital Optical Monitoring (DOM): Real-time monitoring of temperature, voltage, bias current, and TX/RX optical power for simplified network operations and maintenance
- 850nm Wavelength: Compatible with OM3/OM4 multimode fiber — the preferred choice for short-reach intra-data-center interconnects

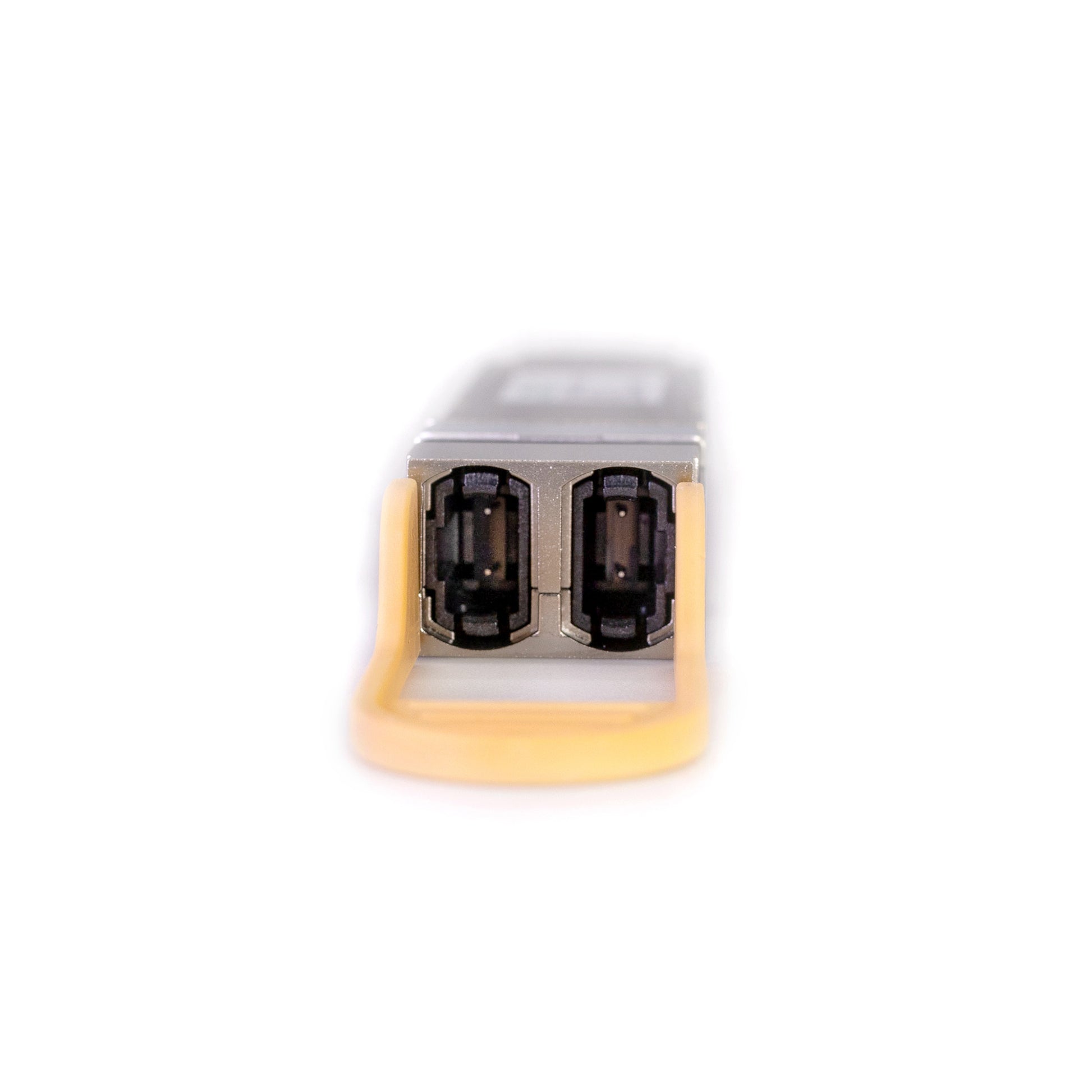

- Dual MPO-12/APC Interface: Standard interface design with broad compatibility for mainstream switches and servers
- Low Power Consumption: Compliant with OSFP MSA standards, plug-and-play ready
- Wide Operating Temperature Range: 0°C ~ 70°C commercial-grade temperature range
Technical Specifications
- Data Rate: 800Gbps (8×100G)
- Form Factor: OSFP
- Wavelength: 850nm
- Fiber Type: Multimode OM3/OM4 (MMF)
- Transmission Distance: 100m (OM4) / 70m (OM3)
- Connector Type: Dual MPO-12/APC
- Modulation: PAM4
- Digital Diagnostics: DOM Supported
- Supply Voltage: 3.3V
- Operating Temperature: 0°C ~ 70°C
- Standards: OSFP MSA, CMIS Rev 5.2, IEEE 802.3
Compatible with Cisco, Arista, Mellanox, Juniper, Dell, and other leading-brand equipment. Each module undergoes rigorous testing before shipment to ensure reliable quality. Contact us for product selection assistance.
Product features
Product features
Technical Specifications：
Parameter Specification
Data Rate 1.6Tbps (2×800G)
Form Factor OSFP224
Modulation PAM4
Center Wavelength 1310nm
Transmission Distance 500m
Fiber Type Single-Mode Fiber (SMF)
Connector Type Dual MPO-12/APC
Digital Diagnostics DOM Supported
Operating Temperature 0°C ~ 70°C
Supply Voltage 3.3V
Compliance IEEE 802.3, MSA
Compatibility
Compatibility
Brand Switch Model
Cisco Nexus 9000 Series
Huawei CloudEngine CE9000 Series
Juniper QFX5220 Series
Arista 7800R3 Series
Nokia 7750 SR Series
Compatible with all MSA-compliant 1.6T OSFP224 ports. Please verify with your network equipment vendor before deployment.
Applications
Applications

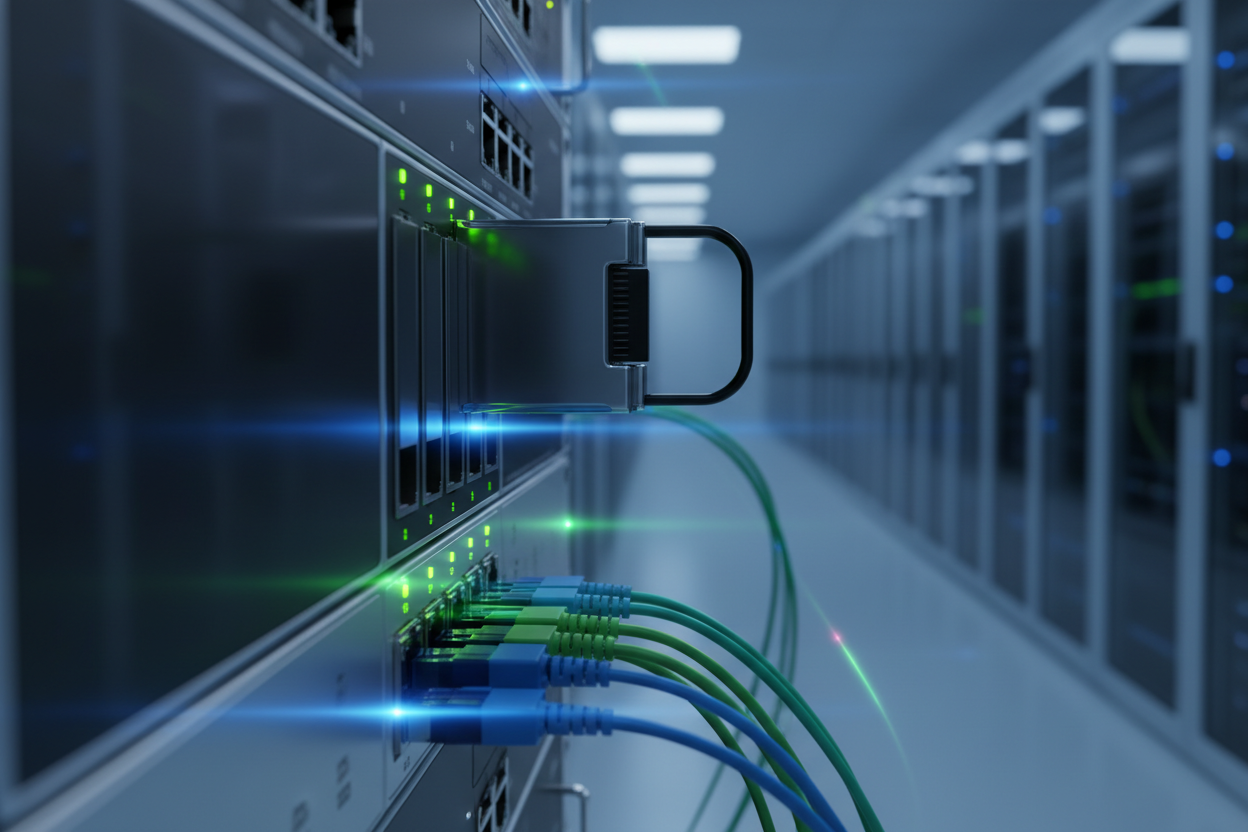

Data Center Interconnect (DCI) — High-density 1.6T connectivity for hyperscale data centers
Cloud Computing — Ultra-high bandwidth backbone links for cloud service providers
5G Fronthaul / Backhaul — Supporting next-generation 5G network infrastructure
AI & HPC Clusters — Low-latency, high-throughput interconnects for AI training and HPC workloads
Enterprise Core Networks — Scalable backbone upgrades for large enterprise environments
