800G OSFP VR8 PAM4 850nm 50m DOM Dual MPO-12/APC Multimode Optical Module

800G OSFP VR8 Multimode Optical Module | PAM4 | 850nm | 50m | DOM | Dual MPO-12/APC

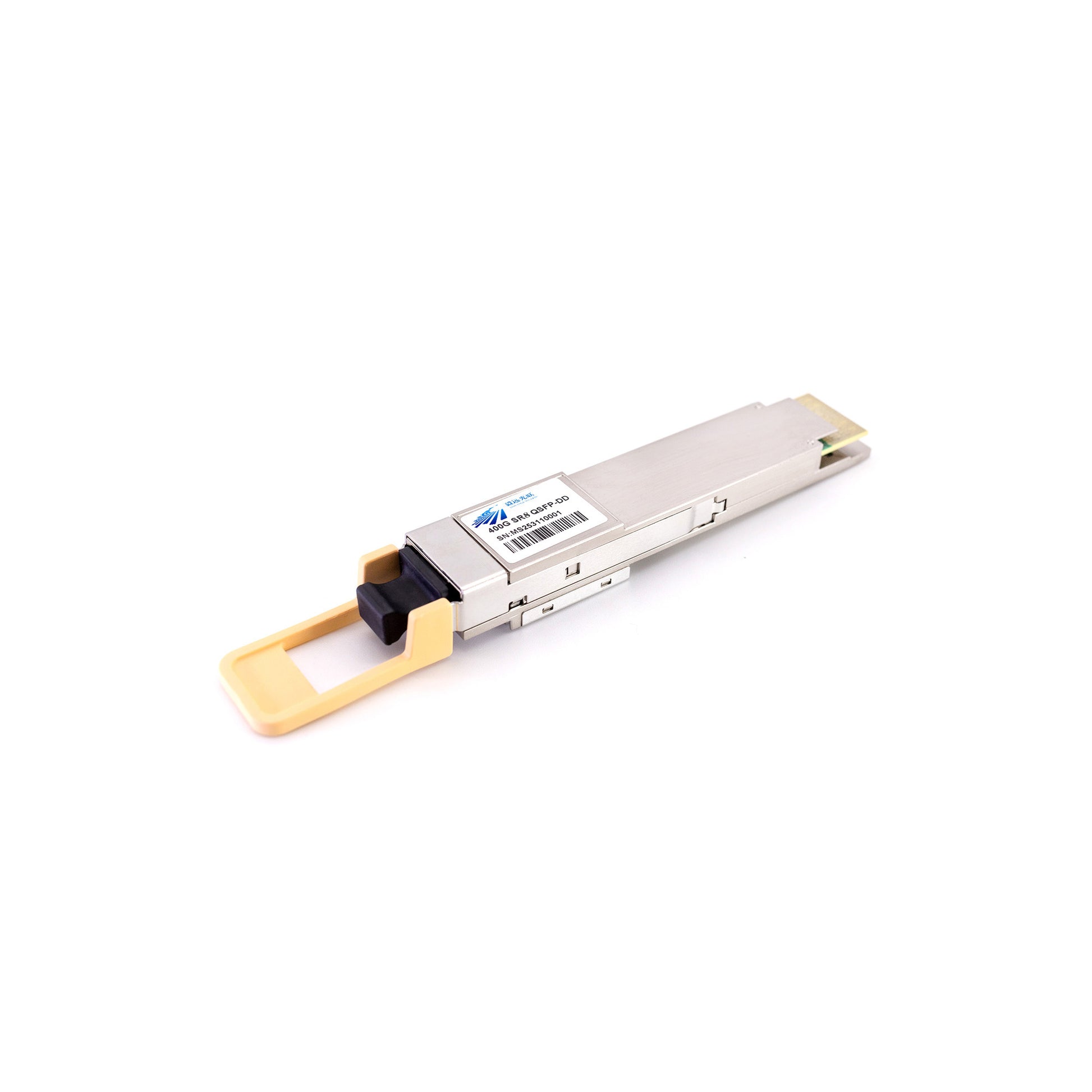

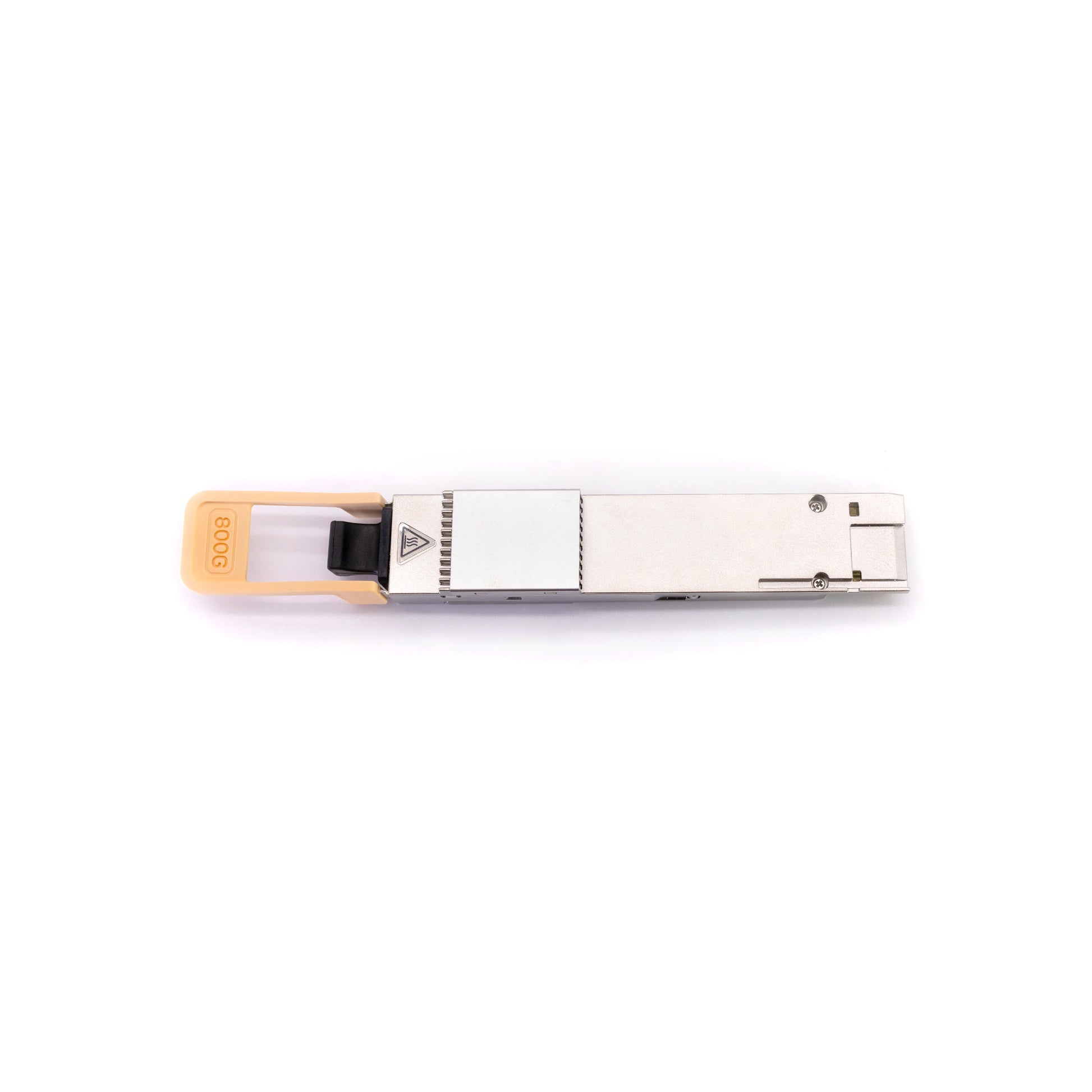

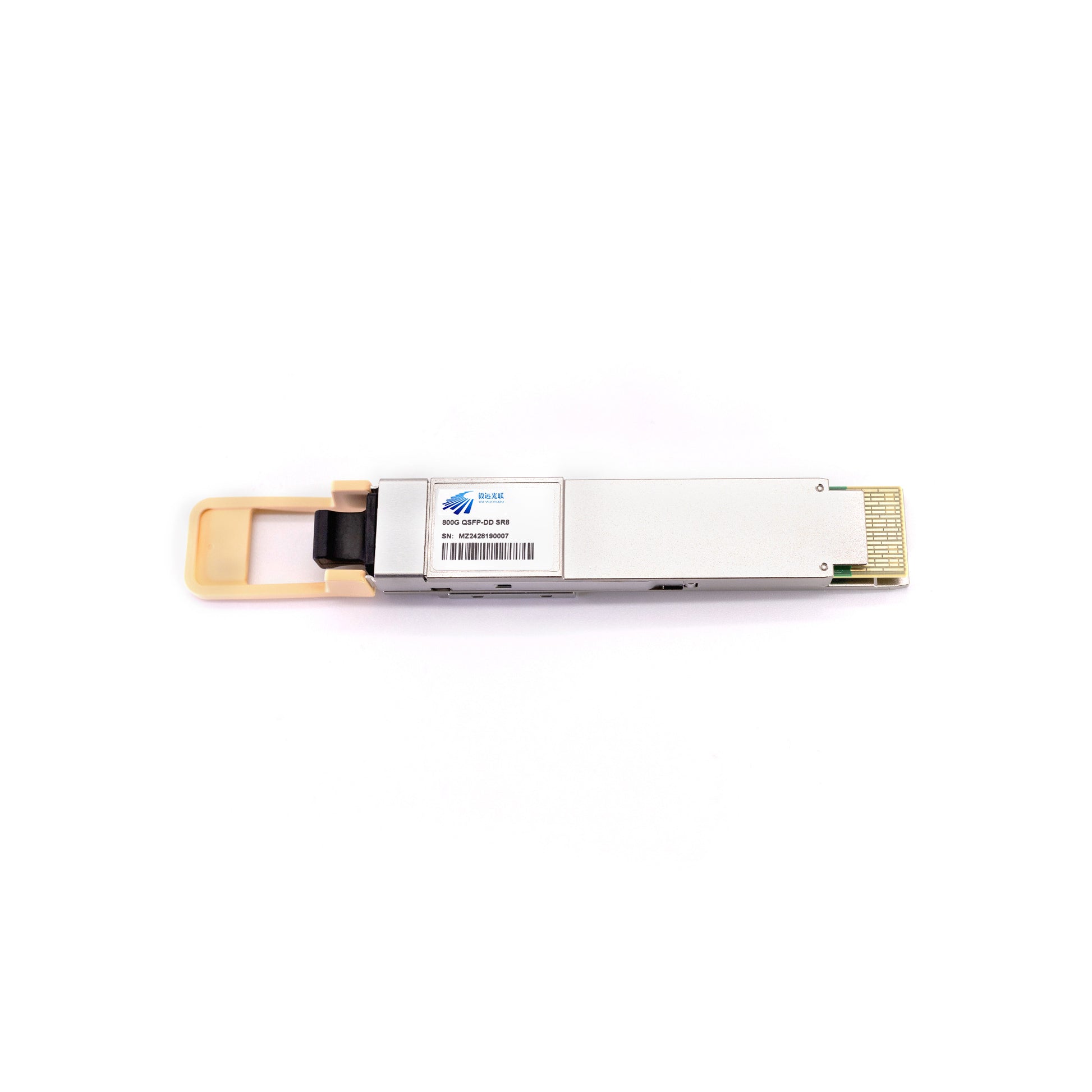

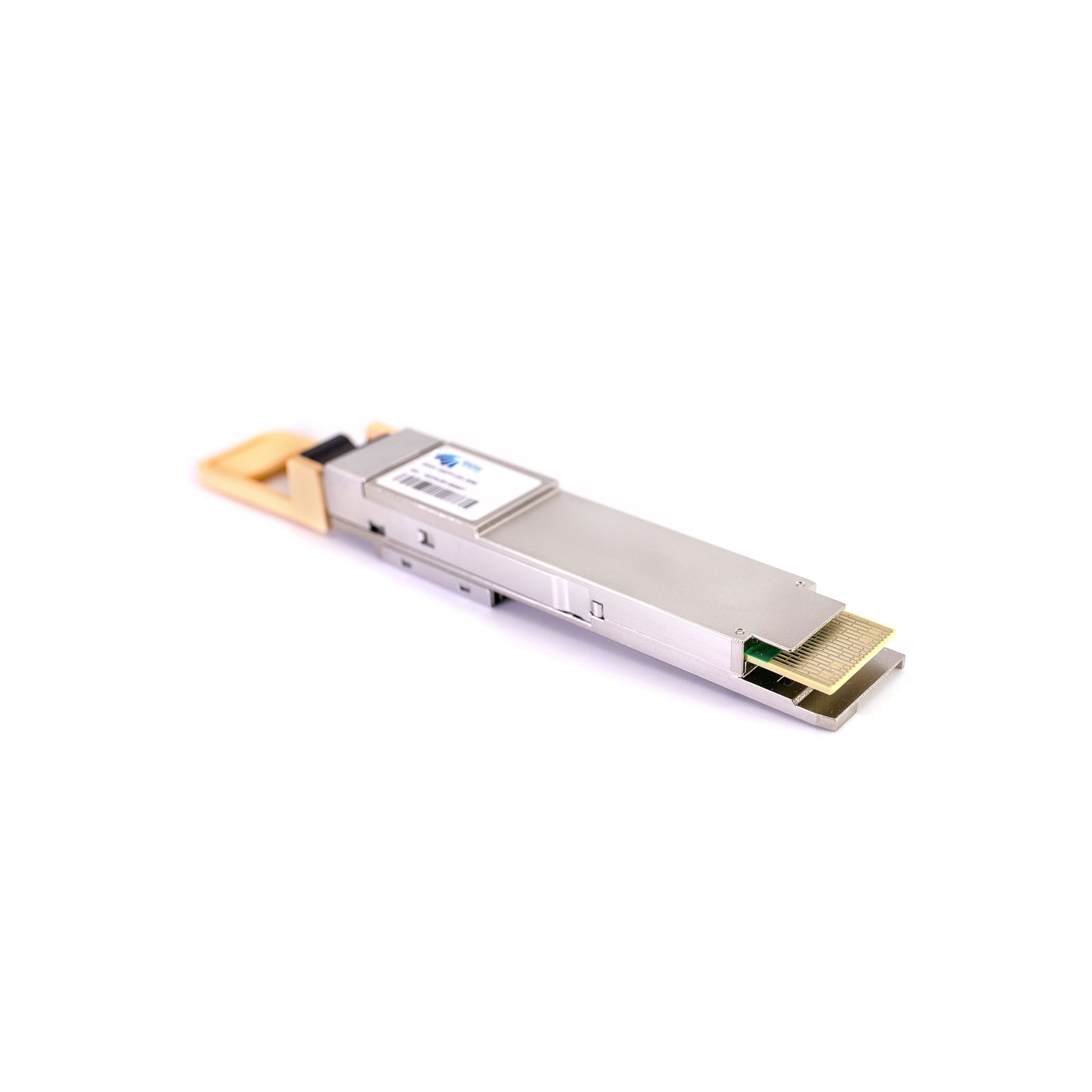

The Yiyuan Guanglian 800G OSFP VR8 optical module is purpose-built for ultra-high-density data center and AI computing cluster short-reach interconnects. Utilizing PAM4 modulation with 8×100G parallel channel architecture, it delivers maximum transmission distances of 50 meters over OM4 multimode fiber, providing extreme bandwidth density and ultra-low latency for short-reach applications.

Key Features

• Ultra-High Bandwidth: 800Gbps aggregate bandwidth, meeting the extreme interconnect demands of AI training clusters and high-performance computing environments
• VR8 Architecture: Optimized for ultra-short-reach, high-density deployments compared to SR8, significantly reducing in-rack cabling complexity
• PAM4 Modulation: 8×100G PAM4 parallel architecture for efficient utilization of multimode fiber resources
• Digital Optical Monitoring (DOM): Real-time monitoring of temperature, voltage, bias current, and TX/RX optical power for simplified network operations and maintenance
• 850nm Wavelength: Compatible with OM3/OM4 multimode fiber — the preferred choice for intra-rack and inter-rack short-reach data center interconnects

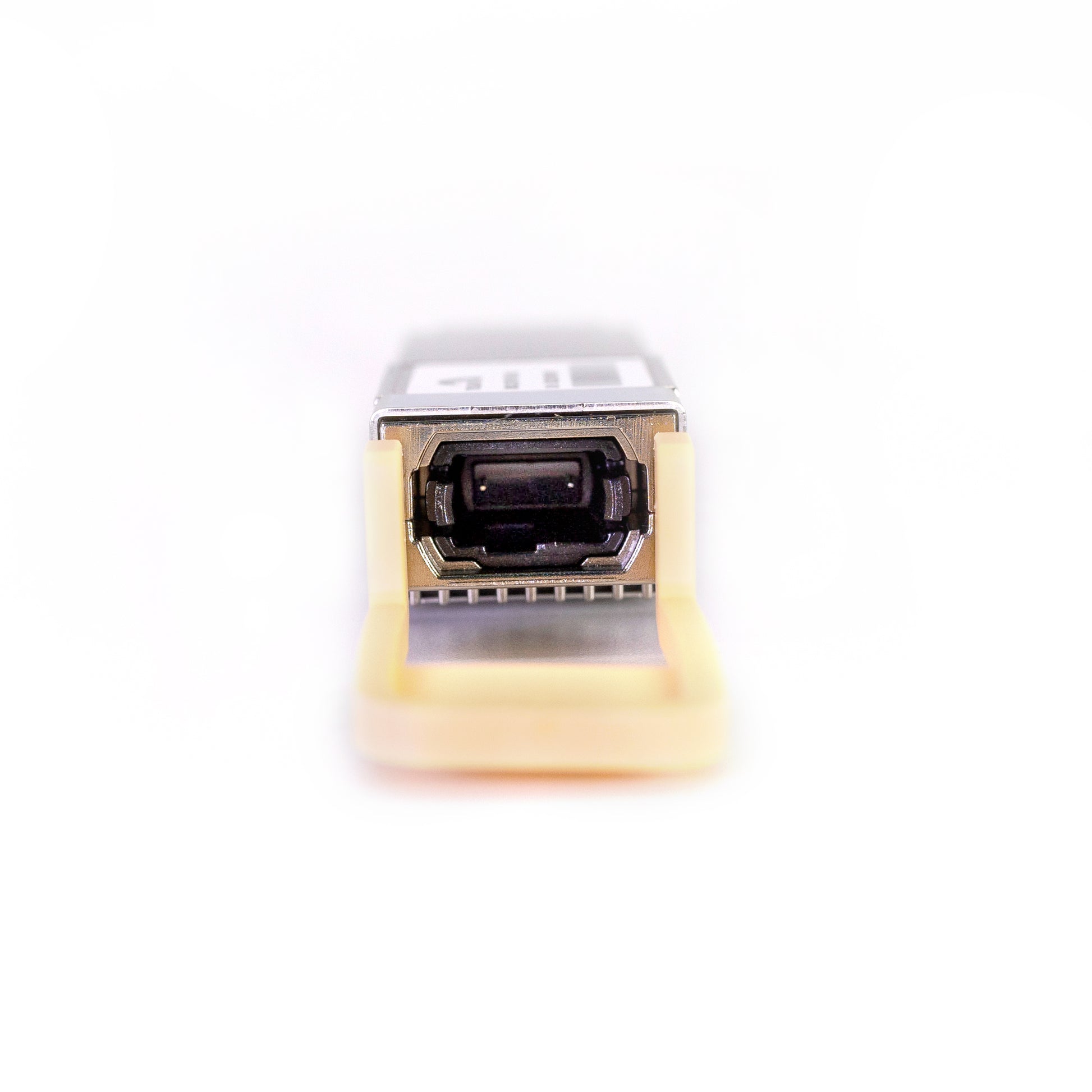

• Dual MPO-12/APC Interface: Standard interface design with broad compatibility for mainstream switches and servers
• Low Power Consumption: Compliant with OSFP MSA standards, plug-and-play ready
• Wide Operating Temperature Range: 0°C ~ 70°C commercial-grade temperature range

Technical Specifications

• Data Rate: 800Gbps (8×100G)
• Form Factor: OSFP
• Wavelength: 850nm
• Fiber Type: Multimode OM3/OM4 (MMF)
• Transmission Distance: 50m (OM4) / 30m (OM3)
• Connector Type: Dual MPO-12/APC
• Modulation: PAM4
• Digital Diagnostics: DOM Supported
• Supply Voltage: 3.3V
• Operating Temperature: 0°C ~ 70°C
• Standards: OSFP MSA, CMIS Rev 5.2, IEEE 802.3

Compatible with Cisco, Arista, Mellanox, Juniper, Dell, and other leading-brand equipment. Each module undergoes rigorous testing before shipment to ensure reliable quality. Contact us for product selection assistance.
