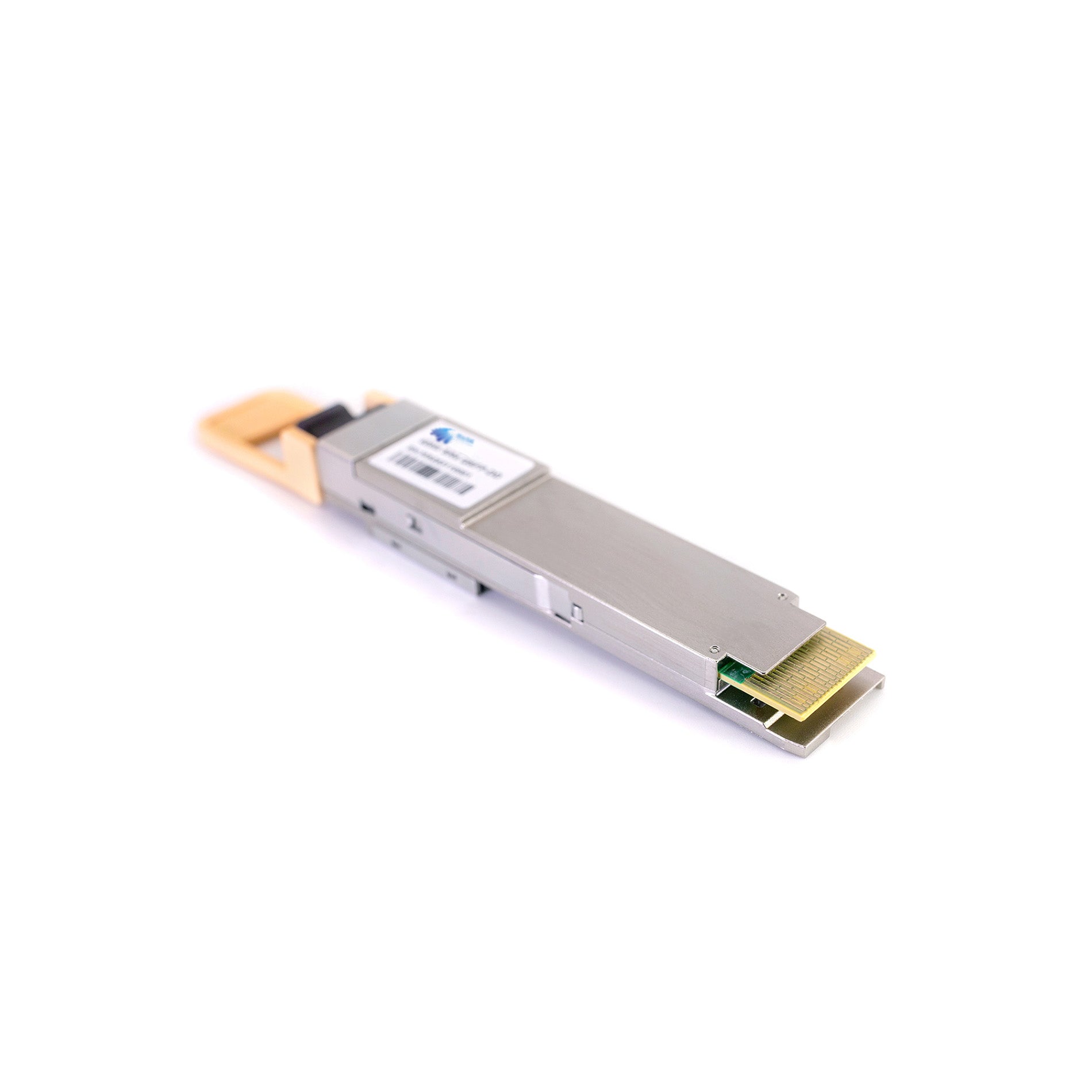

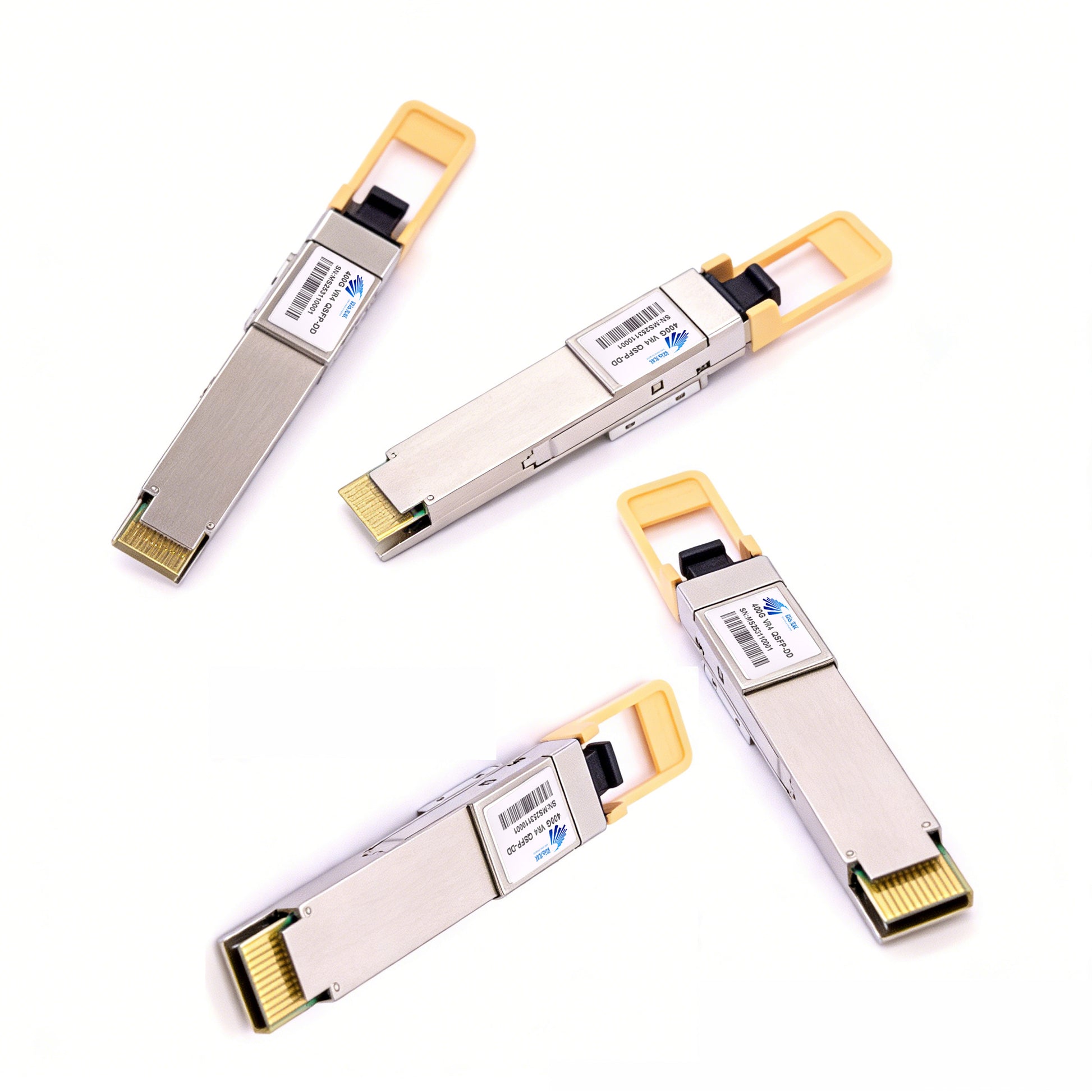

Yiyuan 400G QSFP-DD DR4 1310nm 500m MPO-12 Single-Mode Optical Transceiver

Yiyuan 400G QSFP-DD DR4 Single-Mode Optical Transceiver | PAM4 | 1310nm | 500m | MPO-12/APC | DOM

The Yiyuan 400G QSFP-DD DR4 transceiver delivers 400Gbps over 500 meters of single-mode fiber using 4×100G PAM4 parallel channels at 1310nm. With MPO-12/APC connectors, it bridges the gap between short-reach multimode and long-reach DCI applications — ideal for campus-scale data center interconnects and extended spine-layer links.

Key Features

• 400Gbps over 500m SMF: Mid-reach single-mode for campus DCI and extended spine links
• 4×100G PAM4: Parallel single-mode architecture for high bandwidth efficiency
• 1310nm Wavelength: Low-loss transmission over OS2 single-mode fiber

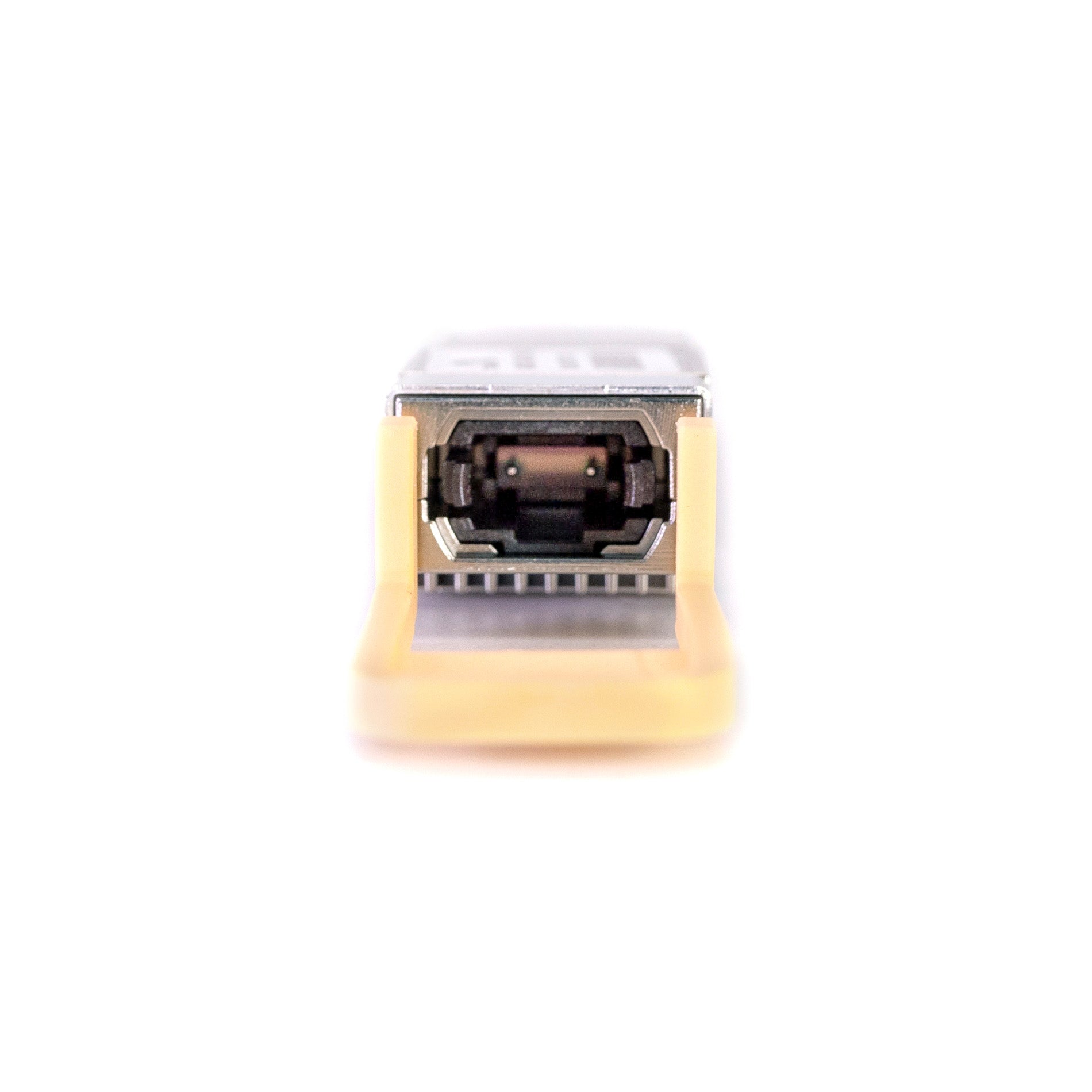

• MPO-12/APC Connector: High-density interface for structured cabling environments
• DOM Supported: Real-time monitoring of optical power, temperature, and voltage
• QSFP-DD MSA Compliant: Plug-and-play with all MSA-compliant platforms
• Operating Temperature: 0°C ~ 70°C commercial grade

Technical Specifications

• Data Rate: 400Gbps (4×100G)
• Form Factor: QSFP-DD
• Wavelength: 1310nm
• Fiber Type: Single-Mode OS2 (SMF)
• Transmission Distance: 500m
• Connector: MPO-12/APC
• Modulation: PAM4
• DOM: Supported
• Standards: QSFP-DD MSA, IEEE 802.3, 400GBASE-DR4

Typical Applications

• Campus-scale data center interconnect (DCI) up to 500m
• Extended spine-leaf fabric over single-mode fiber
• Inter-building links within a campus SMF infrastructure
• Telecom operator data center aggregation
• AI cluster inter-pod medium-reach connections

Compatibility

Compatible with Cisco, Arista, NVIDIA Mellanox, Juniper, Dell, Huawei, and other QSFP-DD MSA-compliant platforms. 100% tested before shipment. Contact us for bulk pricing or OEM inquiries.
